Connector Terminal Identification
>>
Connectors C-100 To C-430
>>
C111
>>
Grand Prix
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Grand Prix

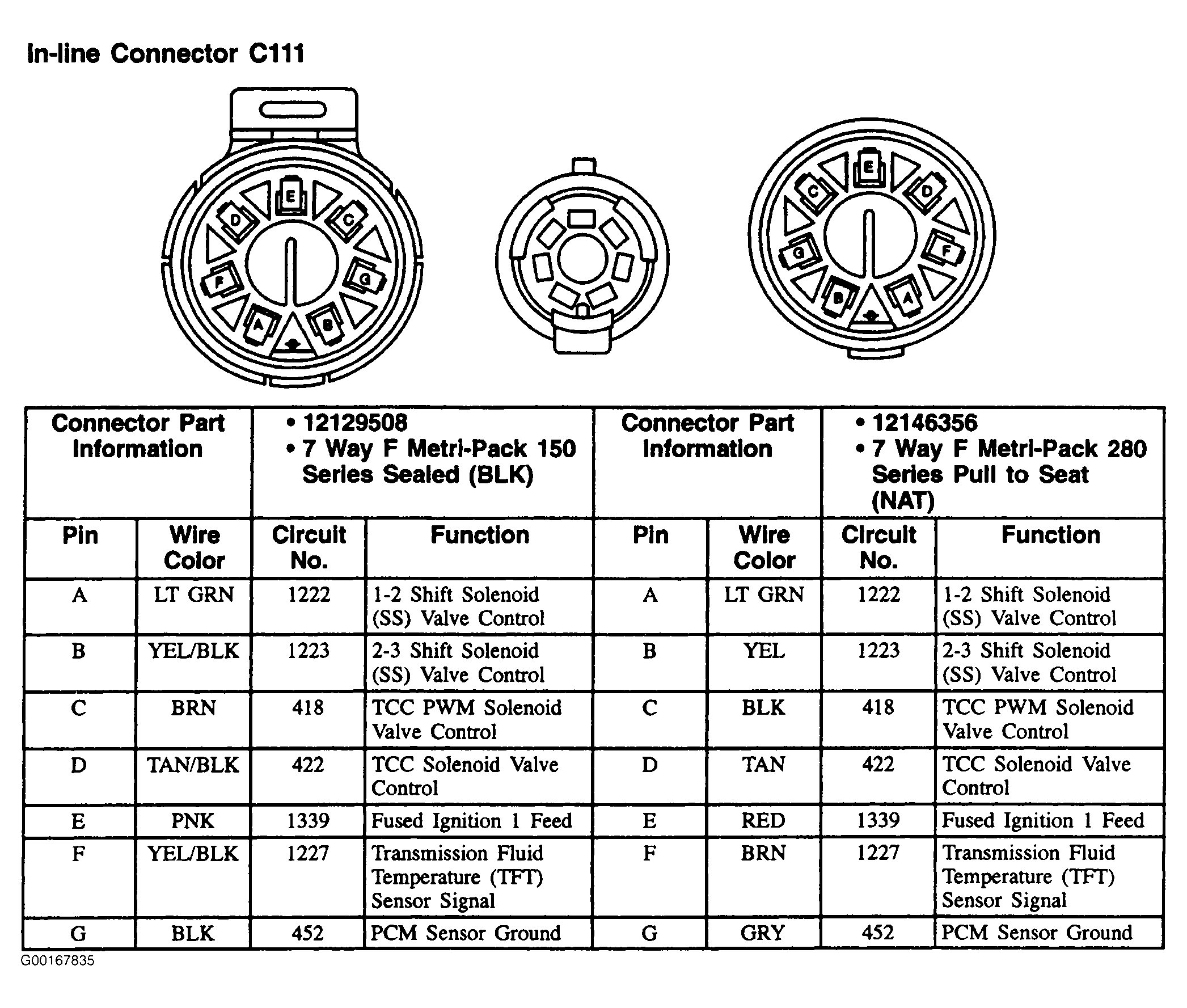

Fig 1: C111 (Grand Prix) - 7-Pin Connector (Black/Natural)
Courtesy of GENERAL MOTORS CORP.
