Connector Terminal Identification
>>
Brake Motor
>>
Century & Regal
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Century & Regal

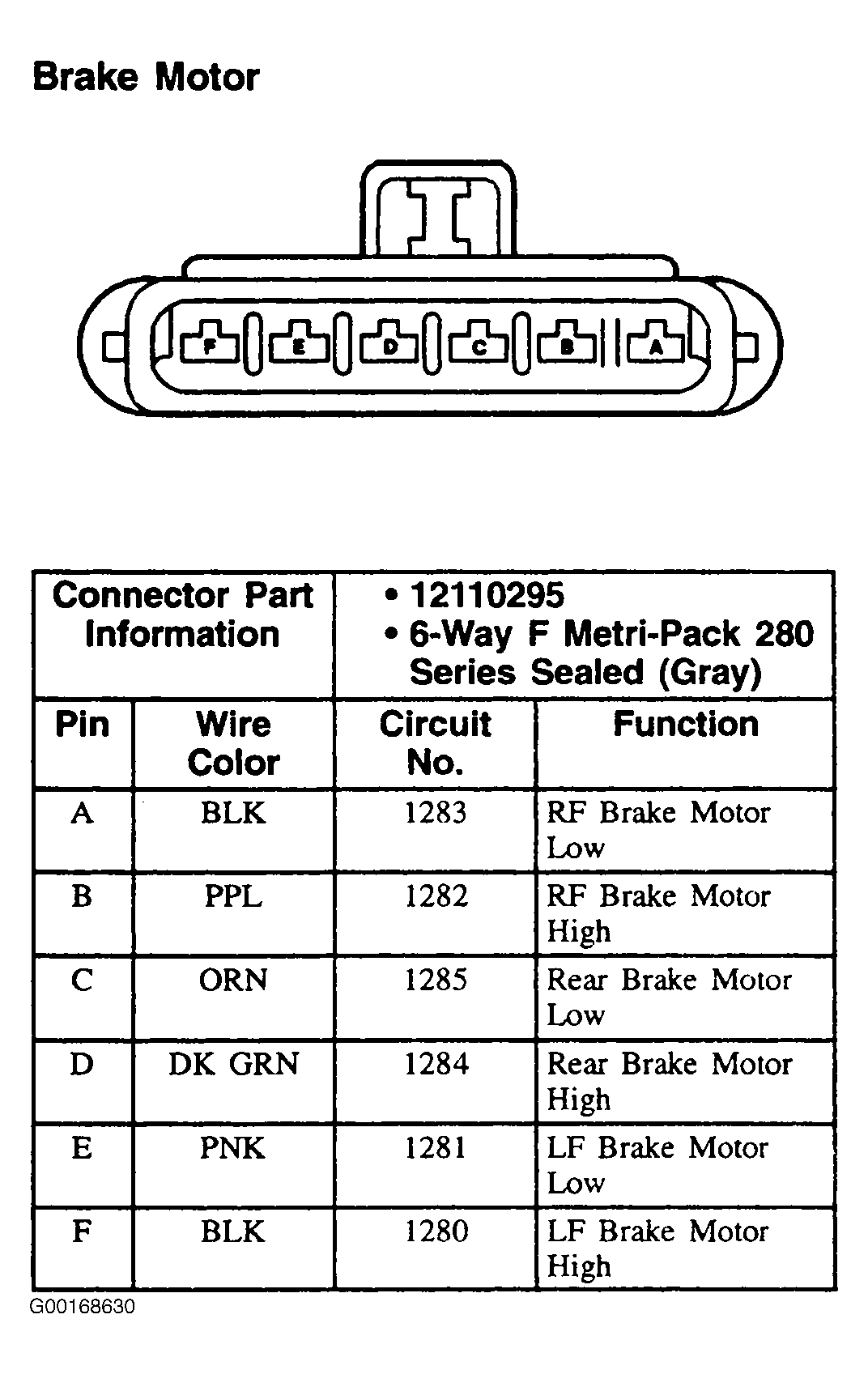

Fig 1: Brake Motor (Century & Regal) - 6-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
