Automatic Transaxle Control (BTSI)

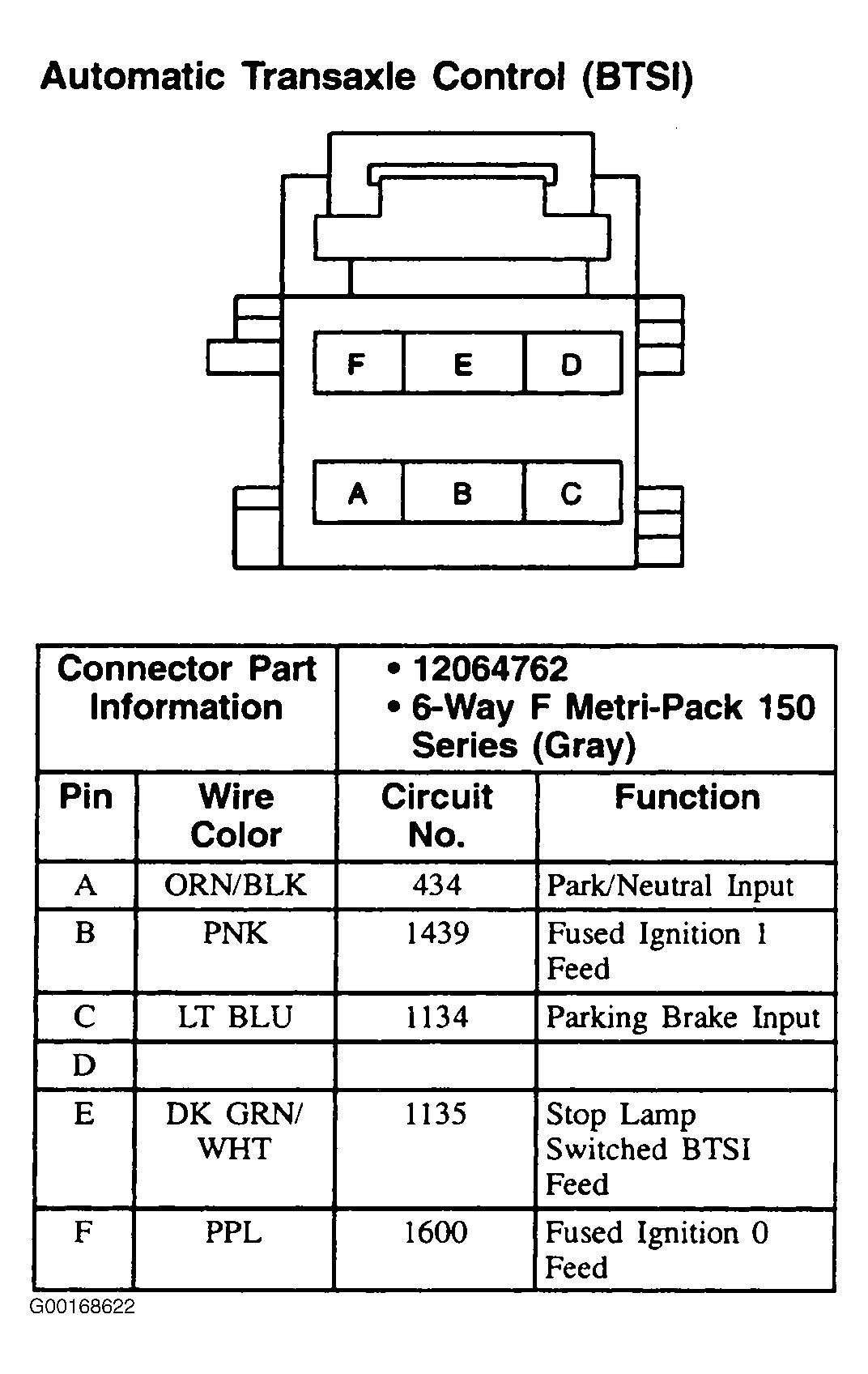

Fig 1: Automatic Transaxle Control (BTSI) (Century & Regal) - 6-Pin Connector (Gray)
G00168622Courtesy of GENERAL MOTORS CORP.
