Pin Assignment - Data Link Connector (DLC)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Pin Assignment - Data Link Connector (DLC)

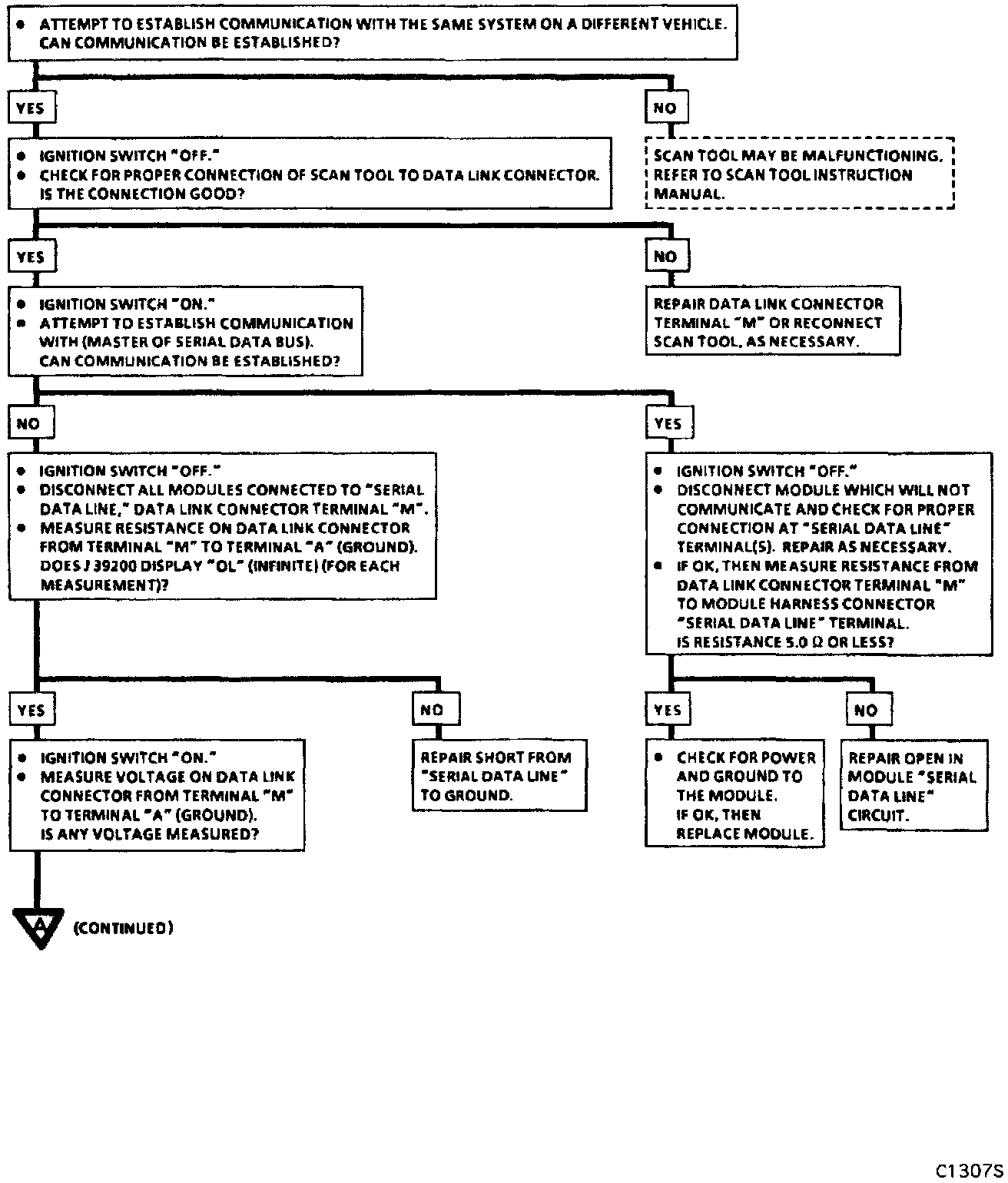

Chart Part 1 Of 2:

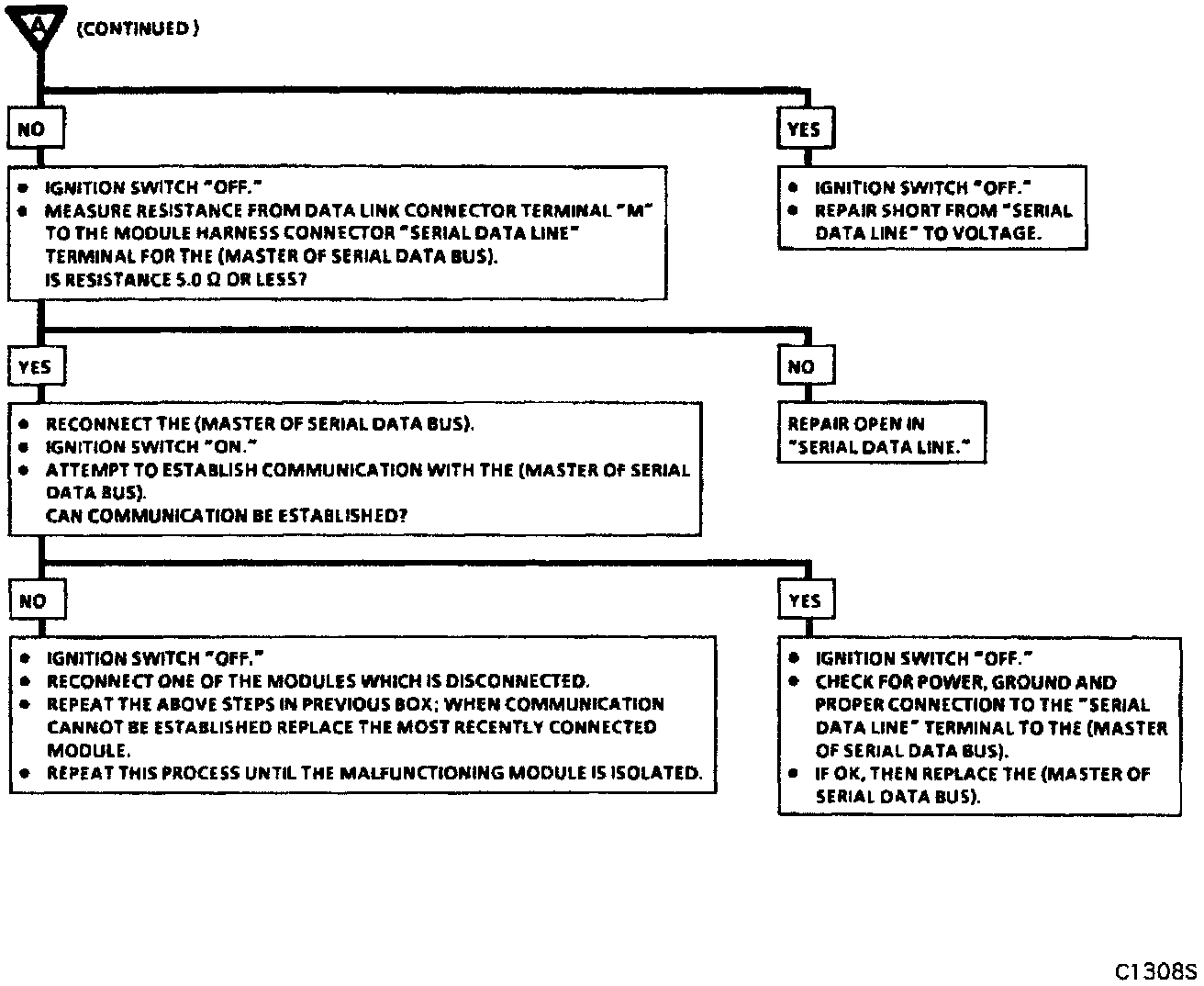

Chart Part 2 Of 2:
