Home >> Buick >> 1995 >> Century L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Fuel Pump In-Line Fuse

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

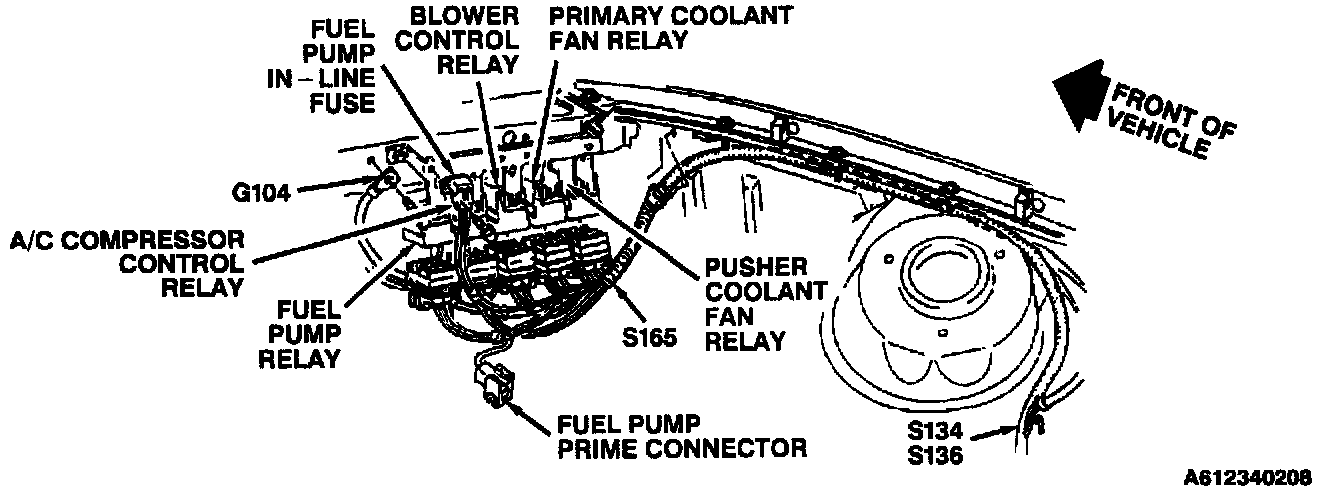

Fuel Pump In-Line Fuse

RH Front Of Engine Compartment:
