Map Light

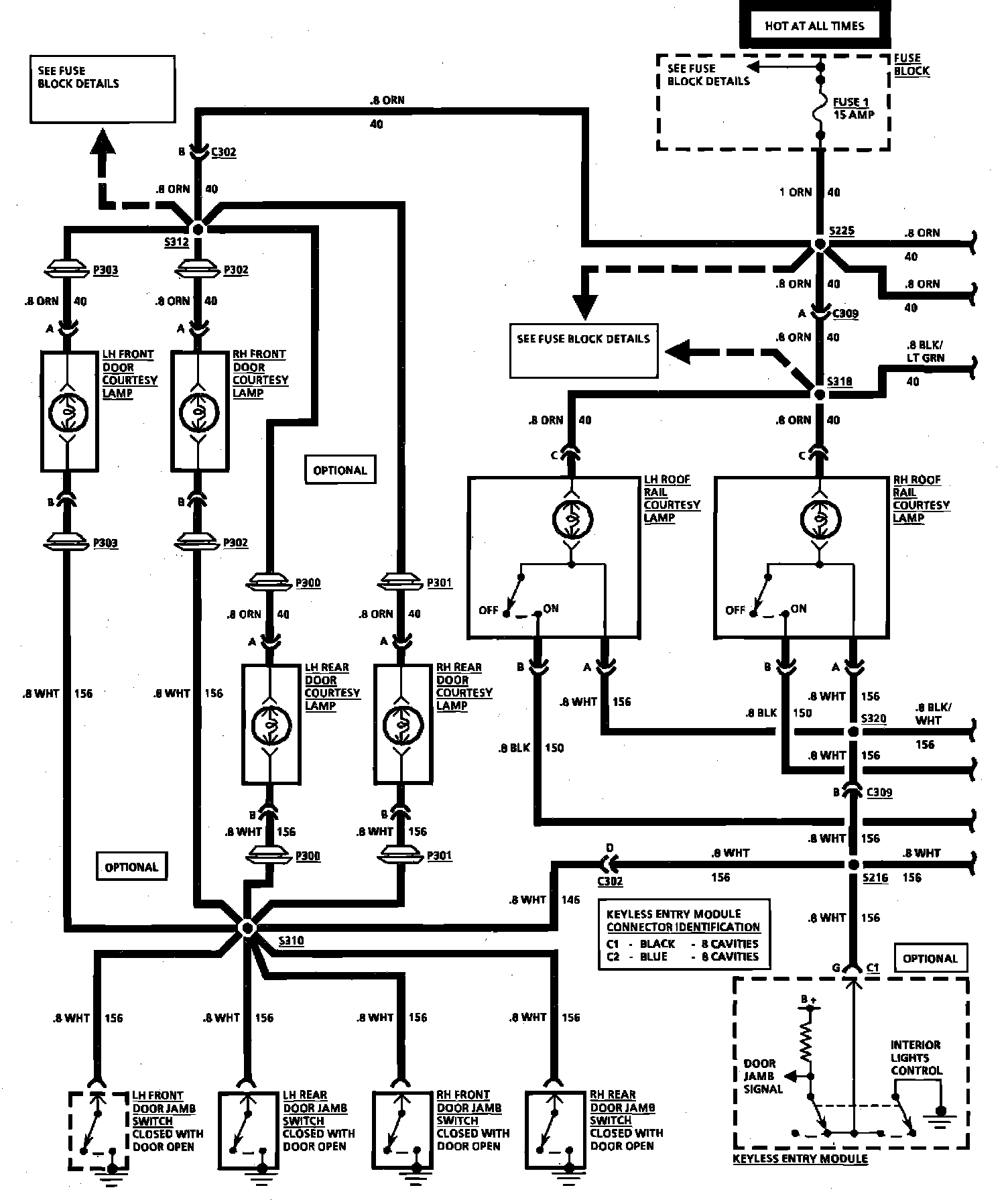

Interior Lamps (Courtesy/Reading & Underhood):

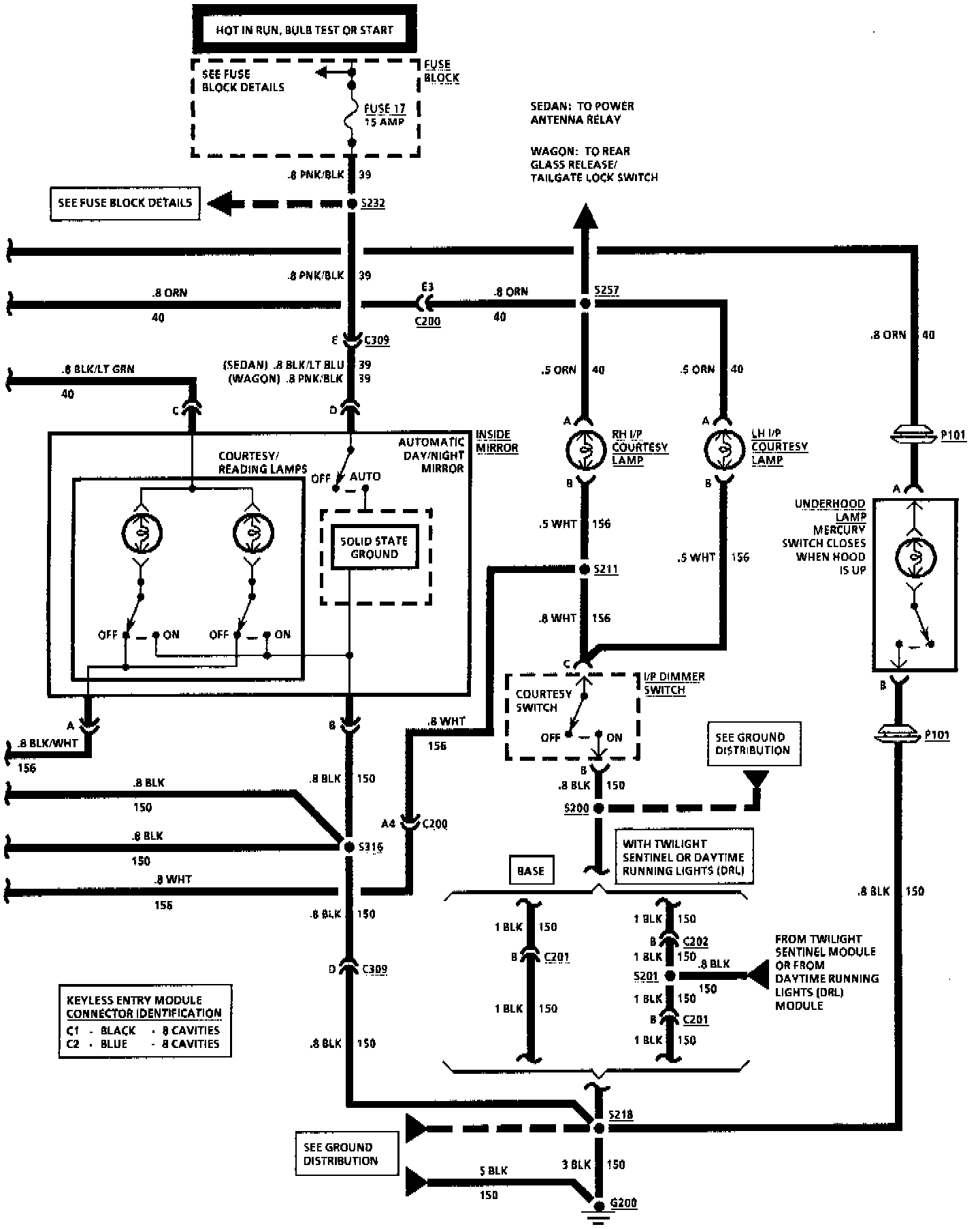

Interior Lights: Courtesy/Reading Lights,Underhood Lamp:
