Removal & Installation

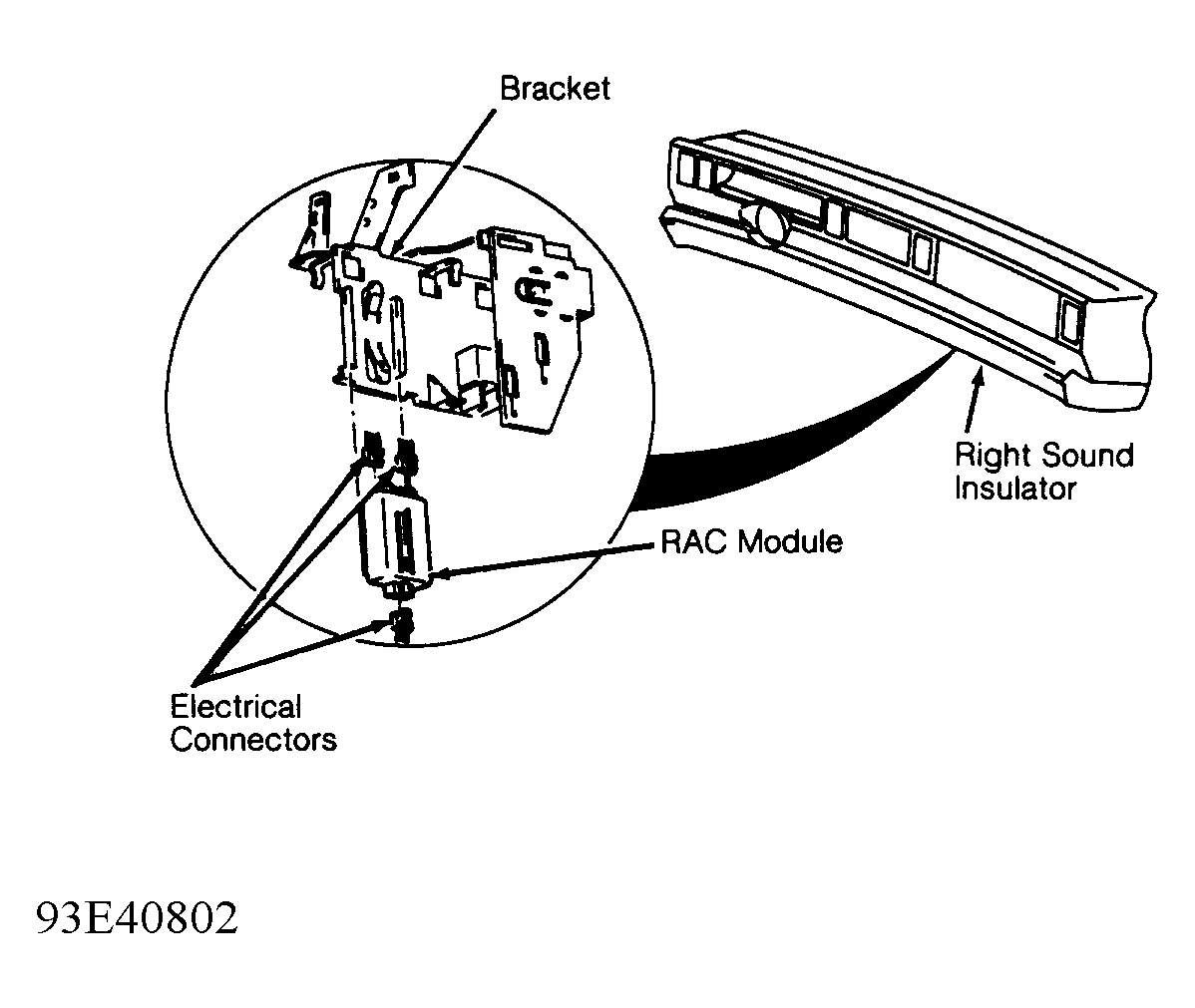

Disable Supplemental Inflatable Restraint (SIR) system. See appropriate AIR BAG article in RESTRAINTS. Remove sound insulator from under right side of dashboard. Slide RAC module off its bracket. See Fig 1 . Disconnect electrical connectors. To install, reverse removal procedure.
