Solenoid Module

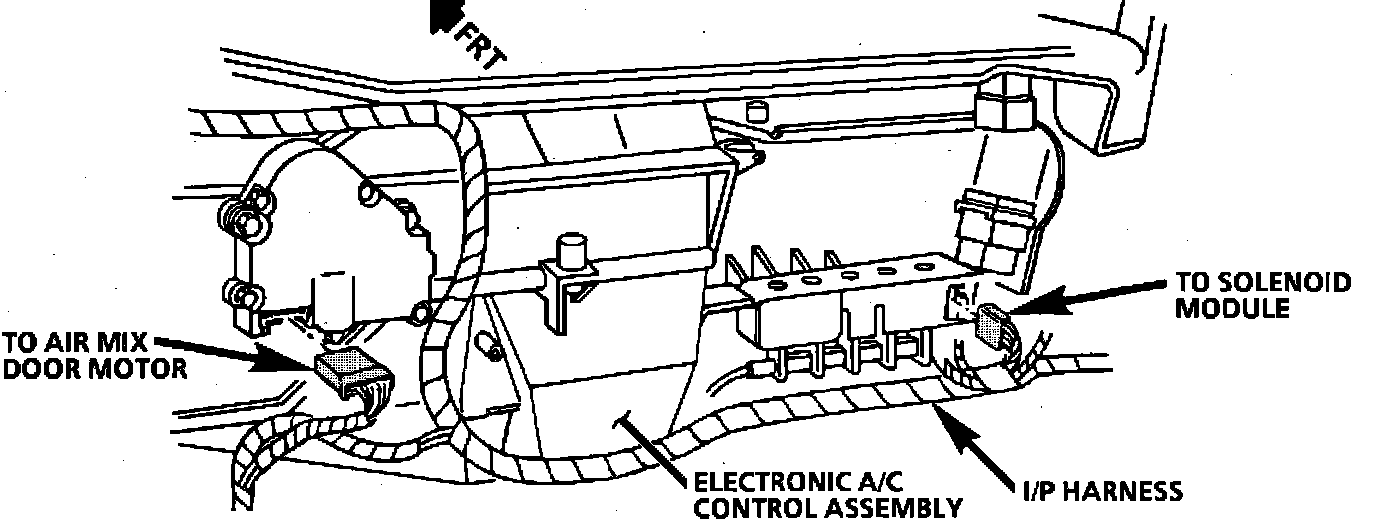

Component Location View. Rear View of Center Instrument Panel (w/Electronic A/C):




Lower RH I/P, below Blower Motor
