Heater Core Case
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Heater Core Case

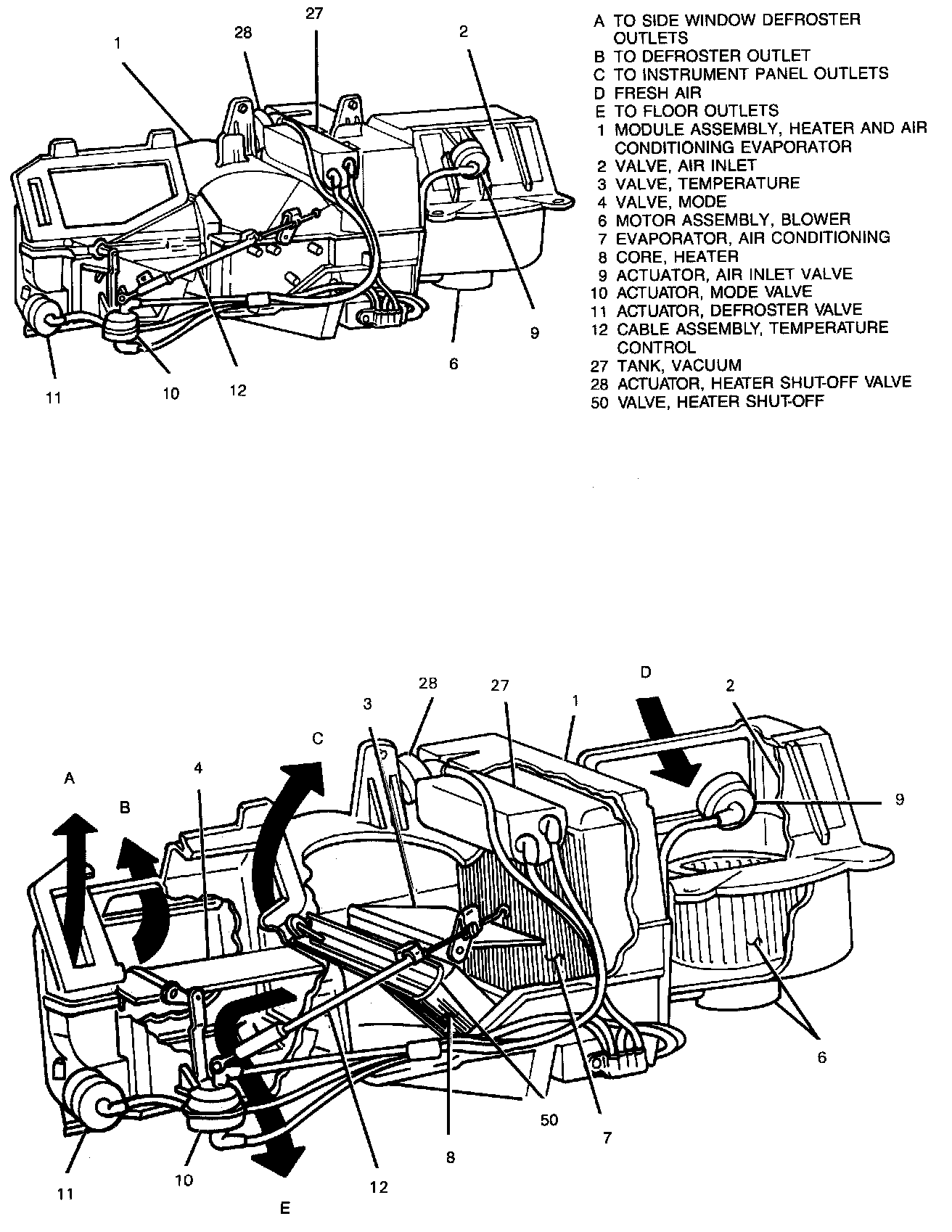

HEATER CORE CASE

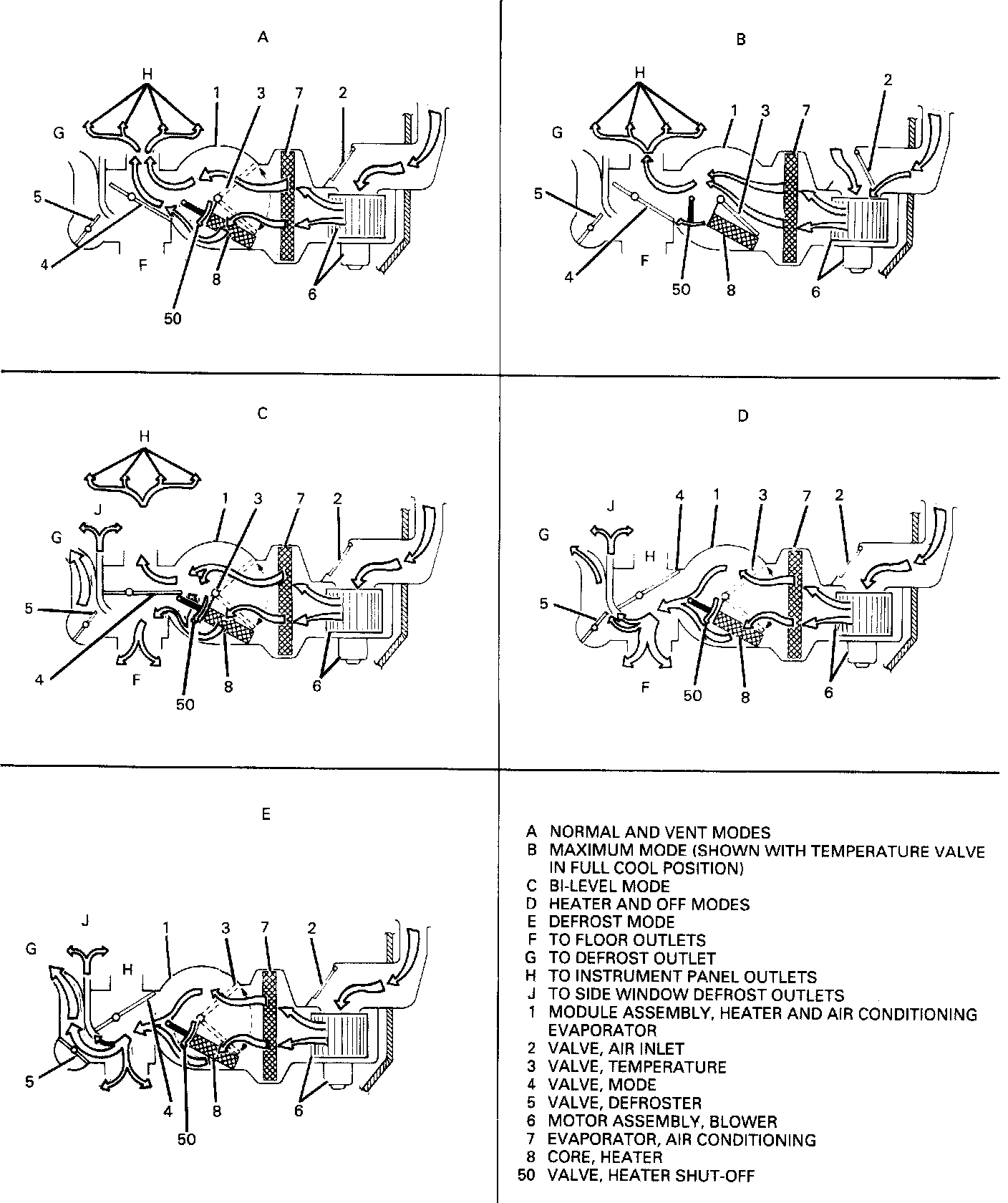

OPERATING MODE
