RWD Column Shift Rod

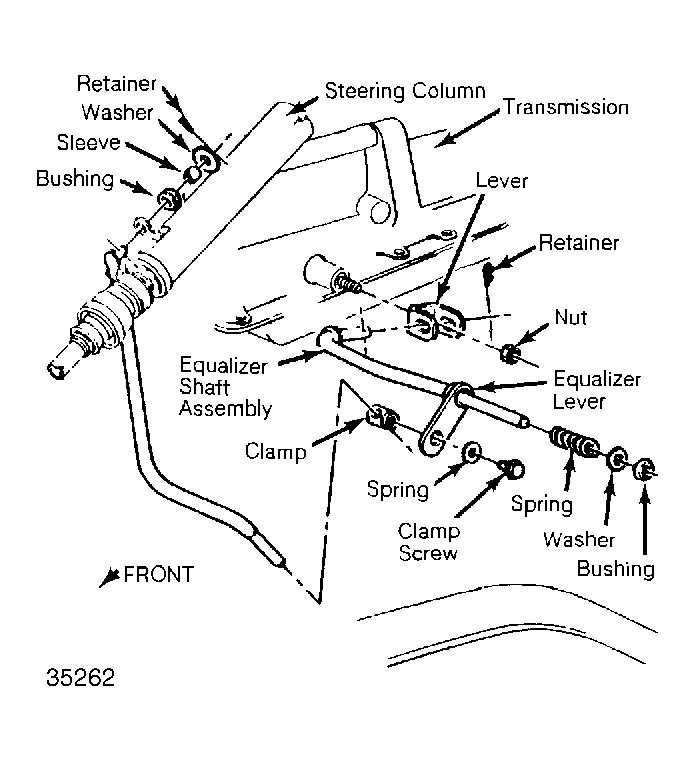

- Position steering column gear selector lever in the Neutral gate notch. Raise and support vehicle. Loosen clamp screw from below vehicle and place transmission lever in Neutral. See Fig 1 .
- Hold clamp flush against equalizer lever. Tighten clamp screw finger tight, then tighten to 21 ft. lbs. (28 N.m) without applying tension on either equalizer lever or selector rod. Ensure there is no tension on either equalizer lever or selector rod after adjustment is complete. See Fig 1 .
