Test Description

  1. Checks for an ignition input signal to keyless entry receiver.
  2. Checks for a false signal from transmission switch or short to voltage on circuit No. 275.
Fig 1: Trnk Release W/ Ign. In RUN & Trans. Out Of Park; Schematic
G93A40899Courtesy of GENERAL MOTORS CORP.

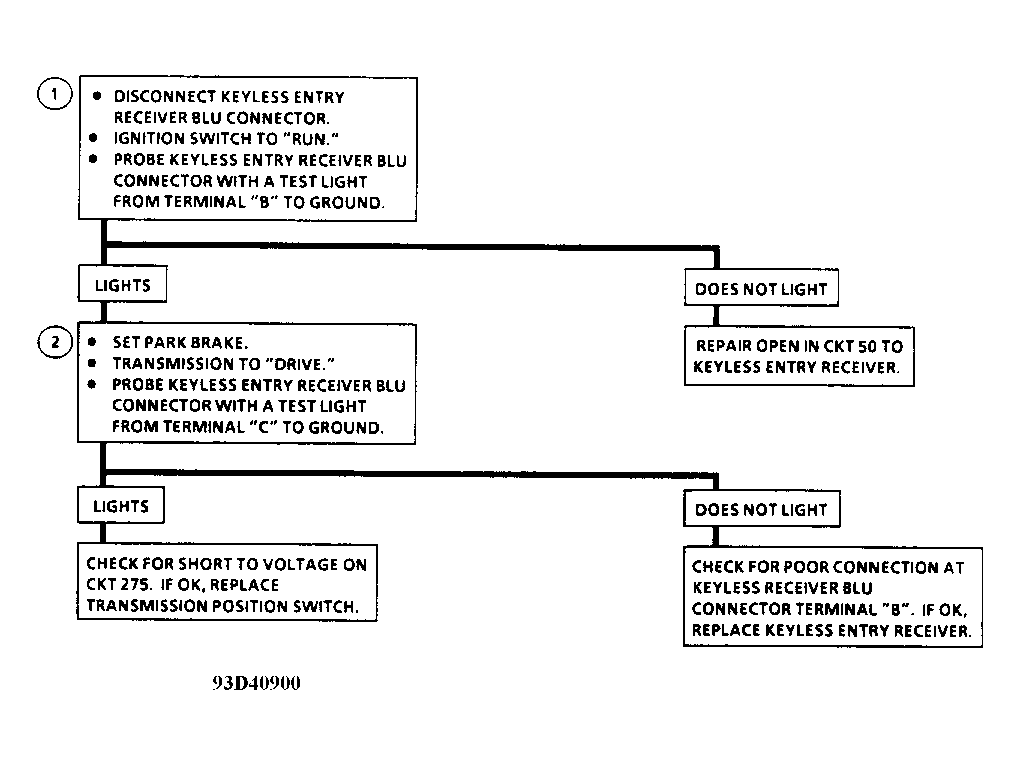

Fig 2: Trunk Rel. W/ Ignition In RUN & Trans. Out Of Prk; Flow Chrt
G93D40900Courtesy of GENERAL MOTORS CORP.
