Switch Plate - Power Seats: Installation

  1. Install electrical connectors.
  2. Install switch plate. See Fig 1 .
  3. Install screws.
  4. Install cover.

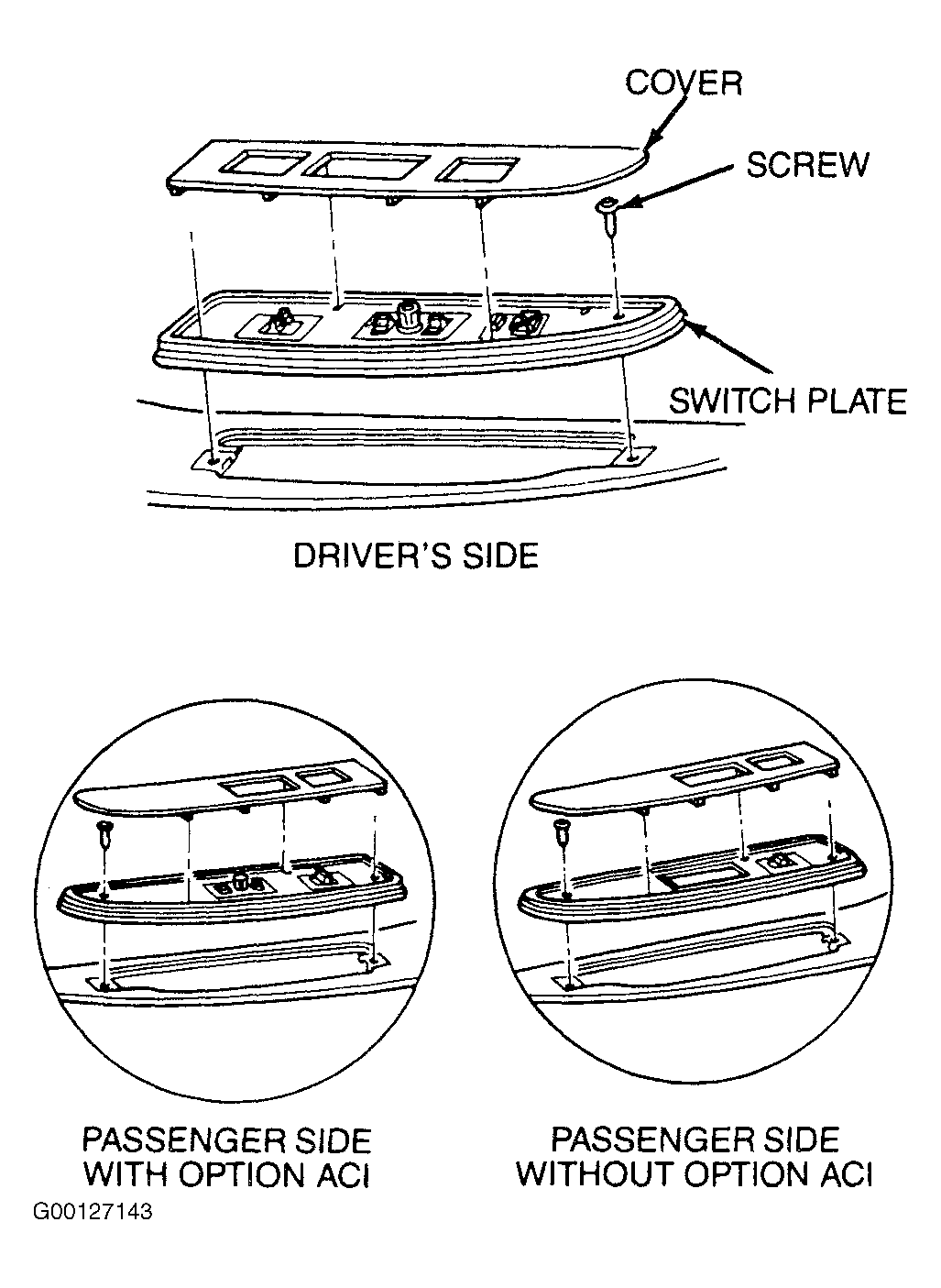

Fig 1: Identifying Power Seat Switch Plate
G00127143Courtesy of GENERAL MOTORS CORP.
