Wiring Diagrams

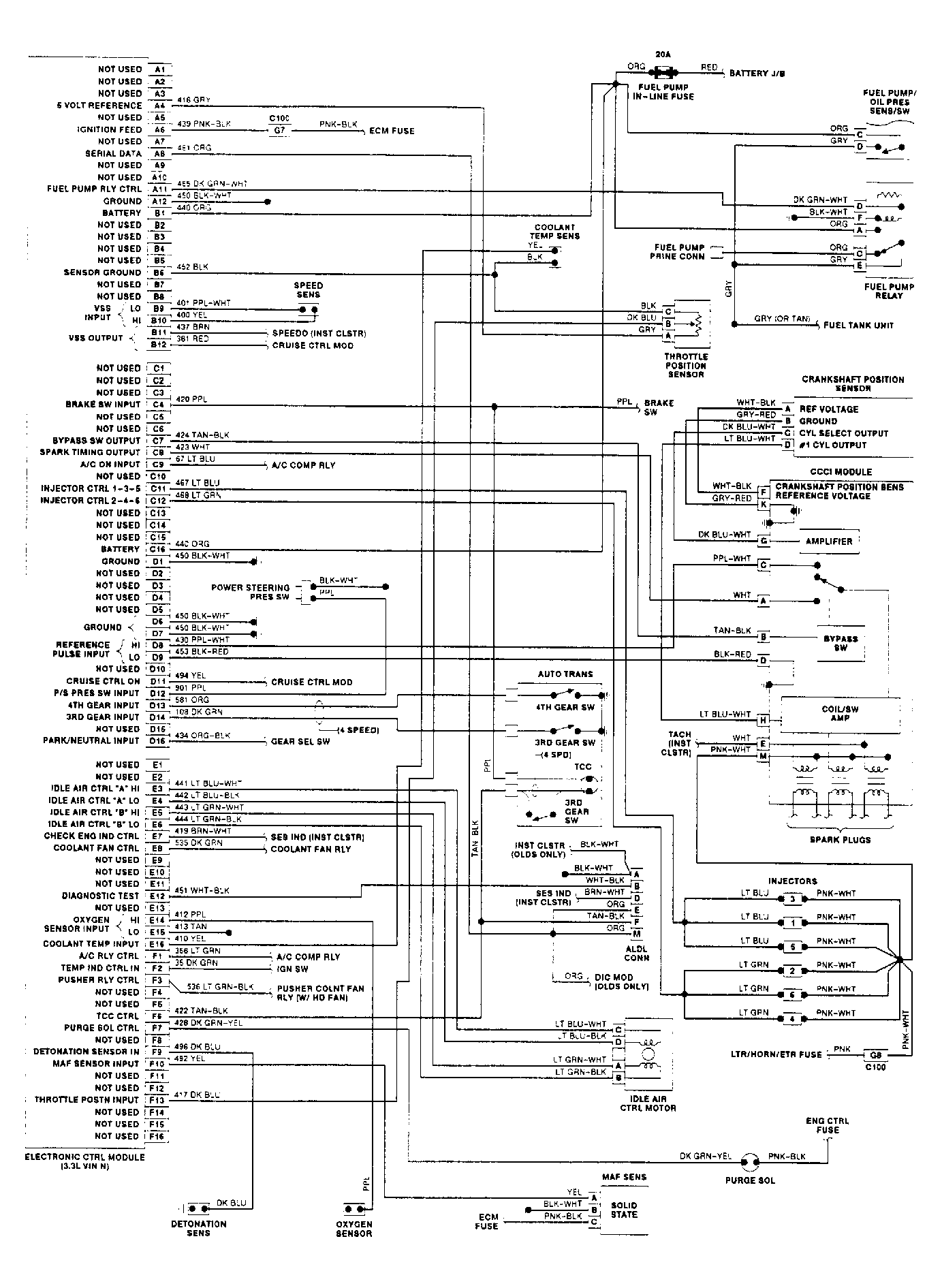

Fig 1: PFI Wiring Diagram (3.3L VIN N, "A" Body)

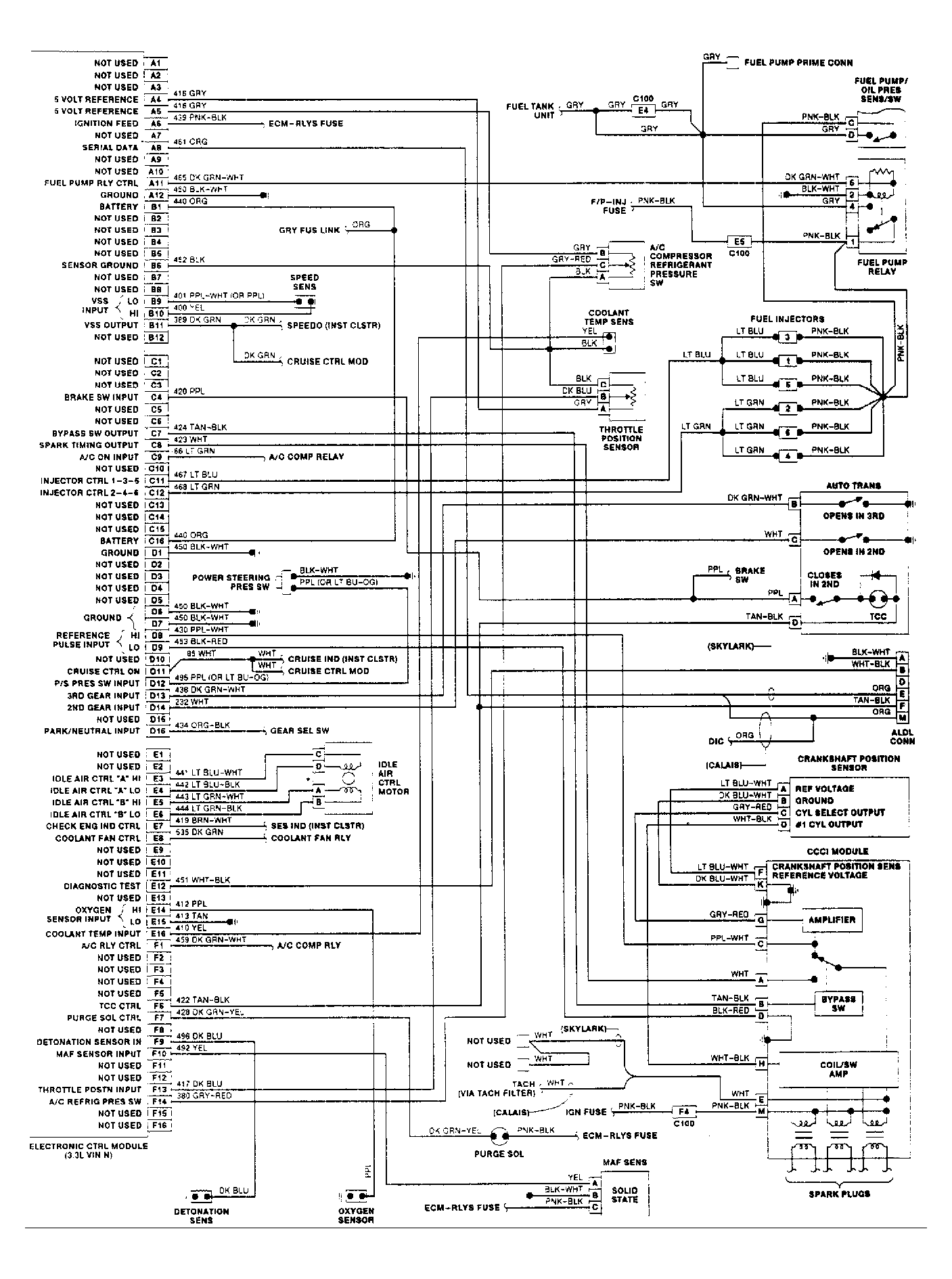

Fig 2: PFI Wiring Diagram (3.3L VIN N, "N" Body)

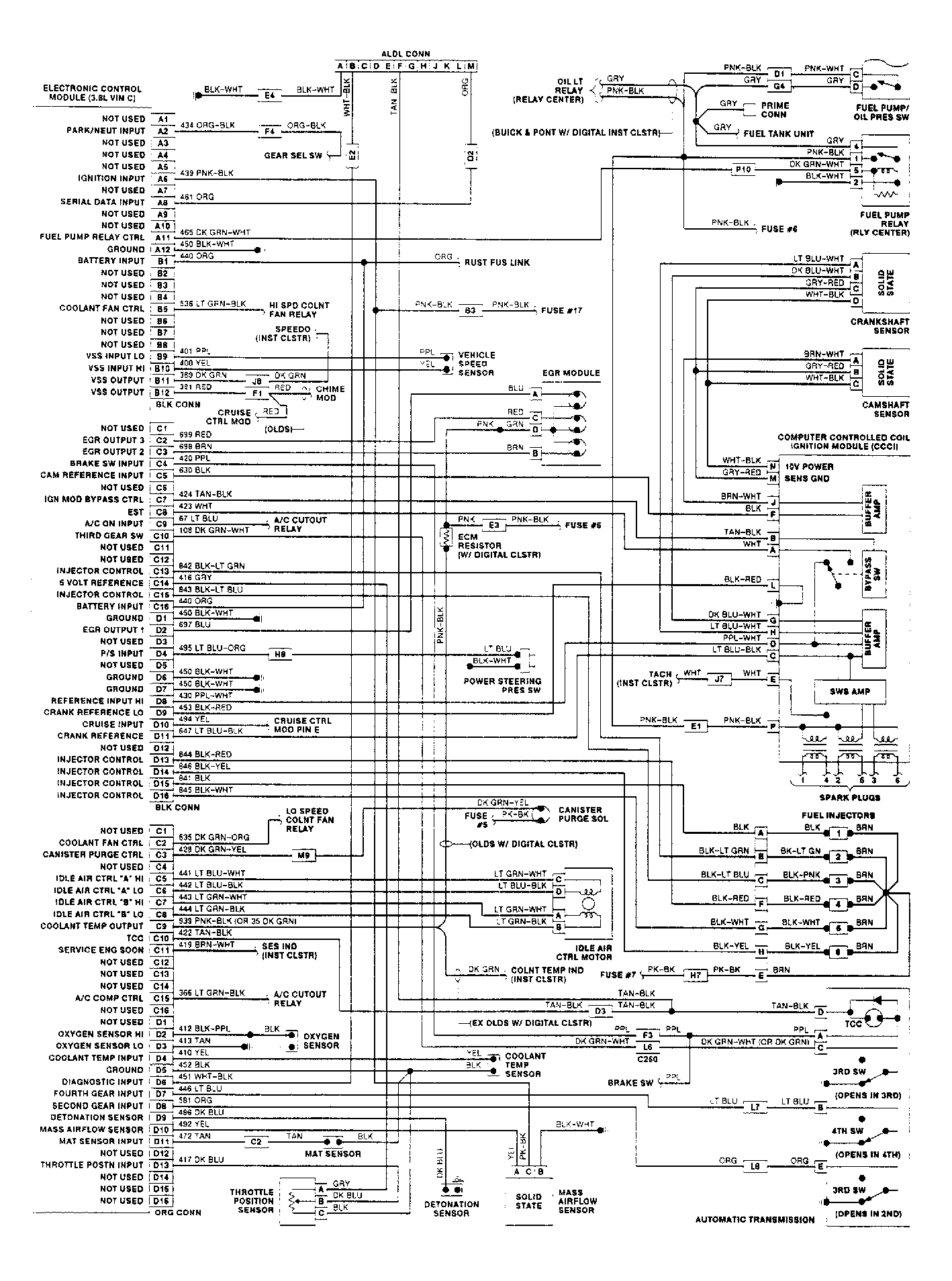

Fig 3: PFI Wiring Diagram (3.8L VIN C, "C" & "H" Bodies)
