Component Location

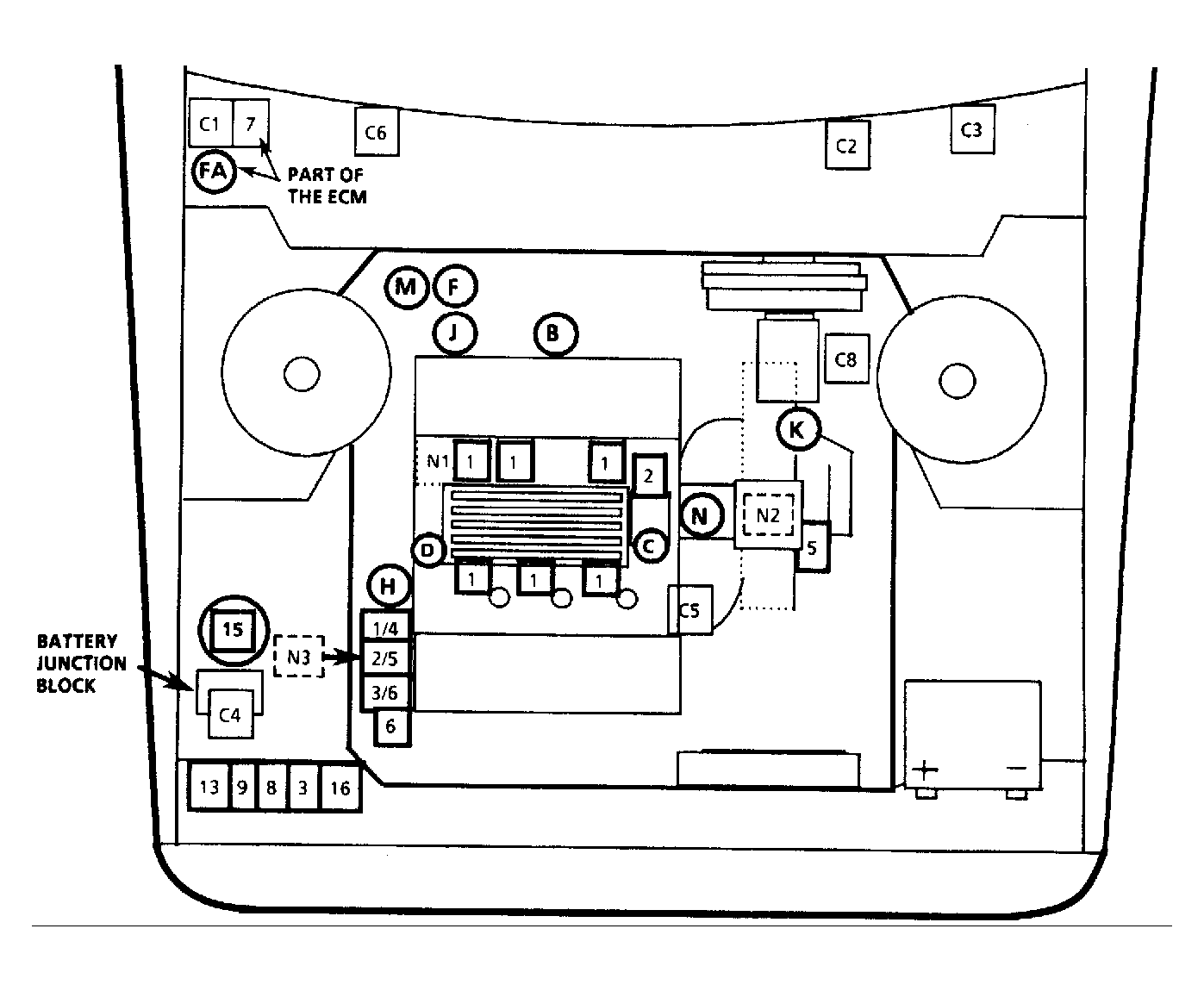

Fig 1: Component Location (3.3L VIN N, "A" Body)

Courtesy of GENERAL MOTORS CORP.

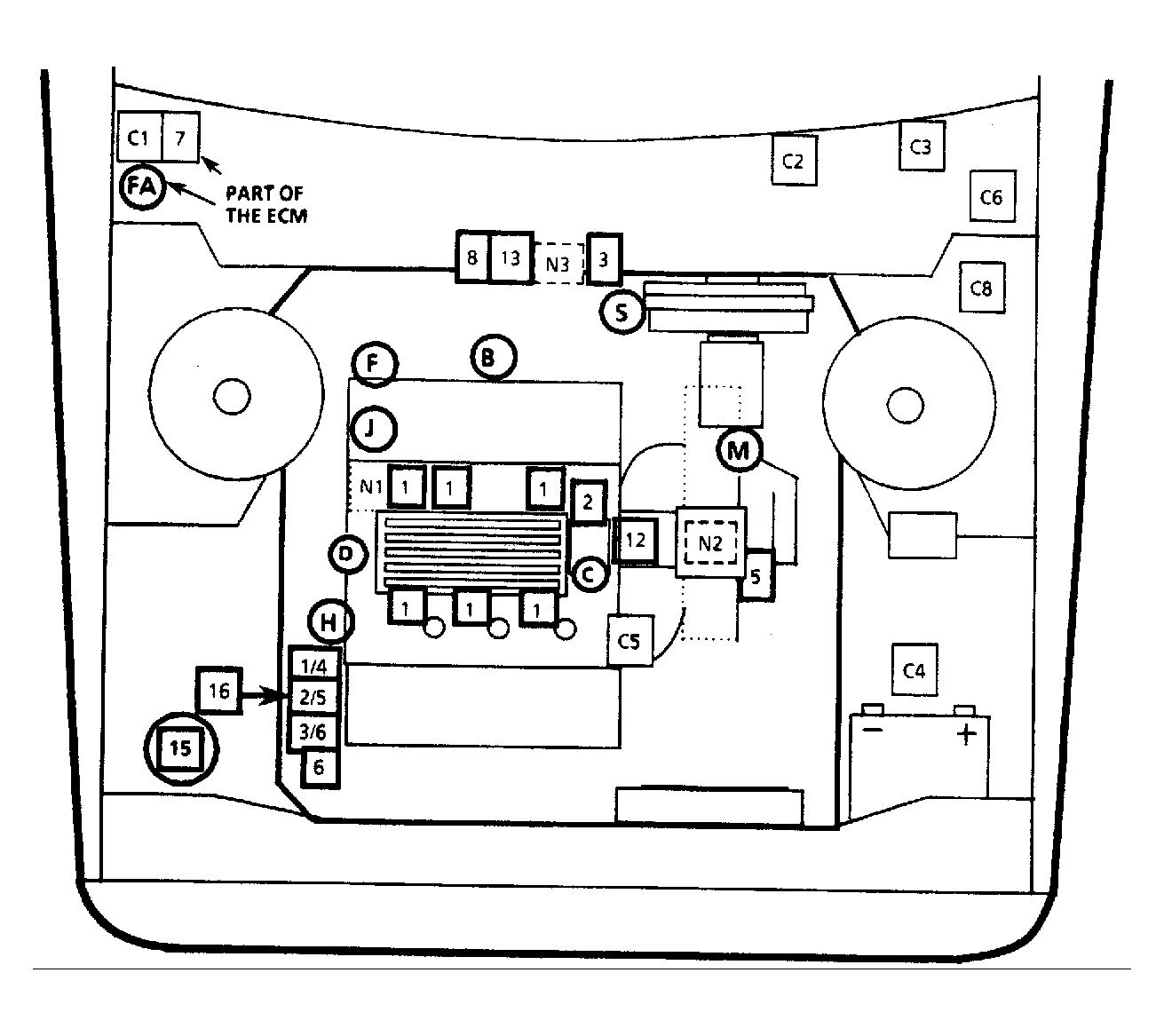

Fig 2: Component Location (3.3L VIN N, "N" Body)

Courtesy of GENERAL MOTORS CORP.

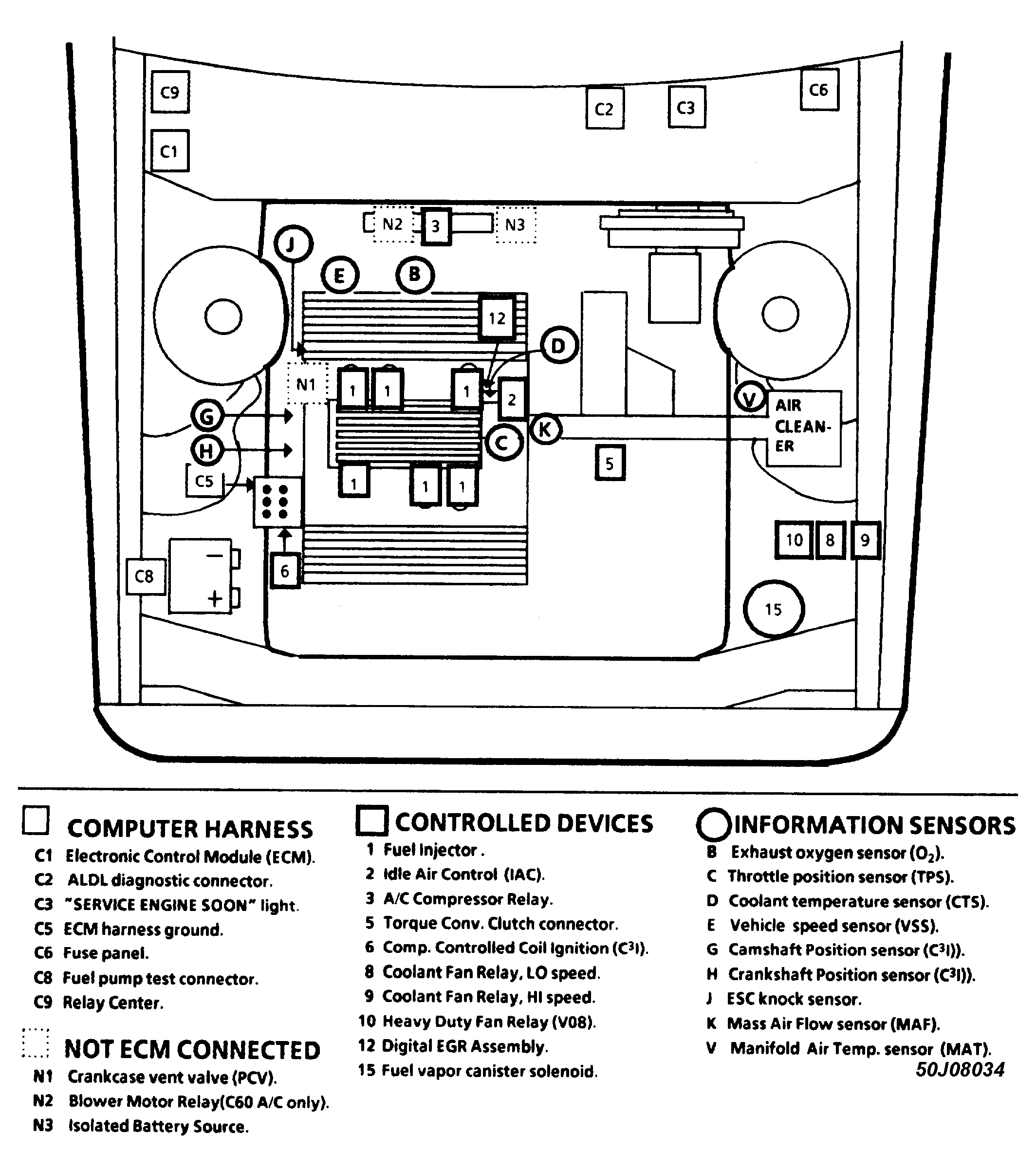

Fig 3: Component Location (3.8L VIN C, "C" & "H" Bodies)

Courtesy of GENERAL MOTORS CORP.
