Data Link Connector: Locations

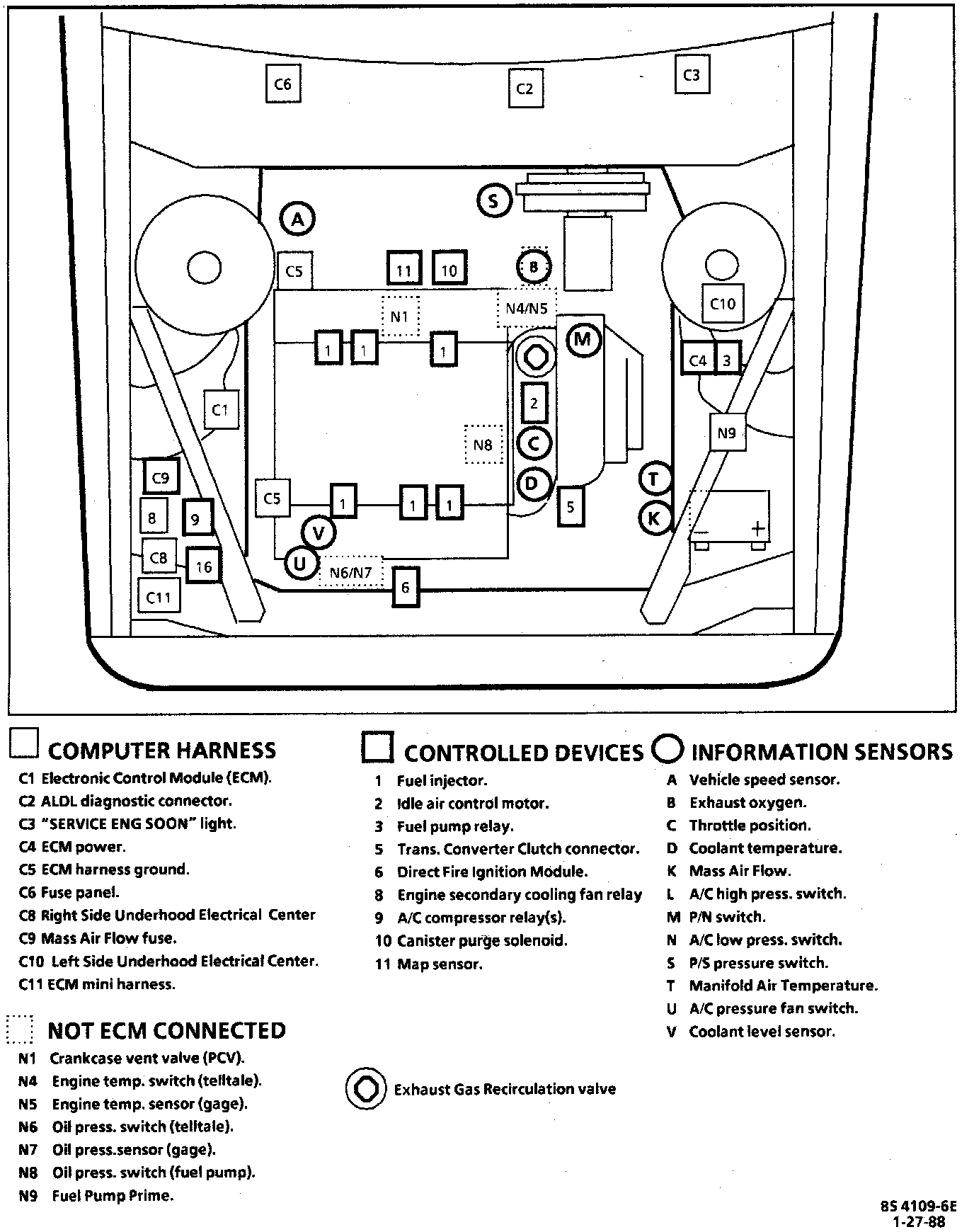

Engine Component Locations:




The Data Link Connector (DLC), formerly the Assembly Line Diagnostic link (ALCL), is located under left side of dash.
Refer to C-2 in the image.
