Electronic/Powertrain Control Module (ECM/PCM)

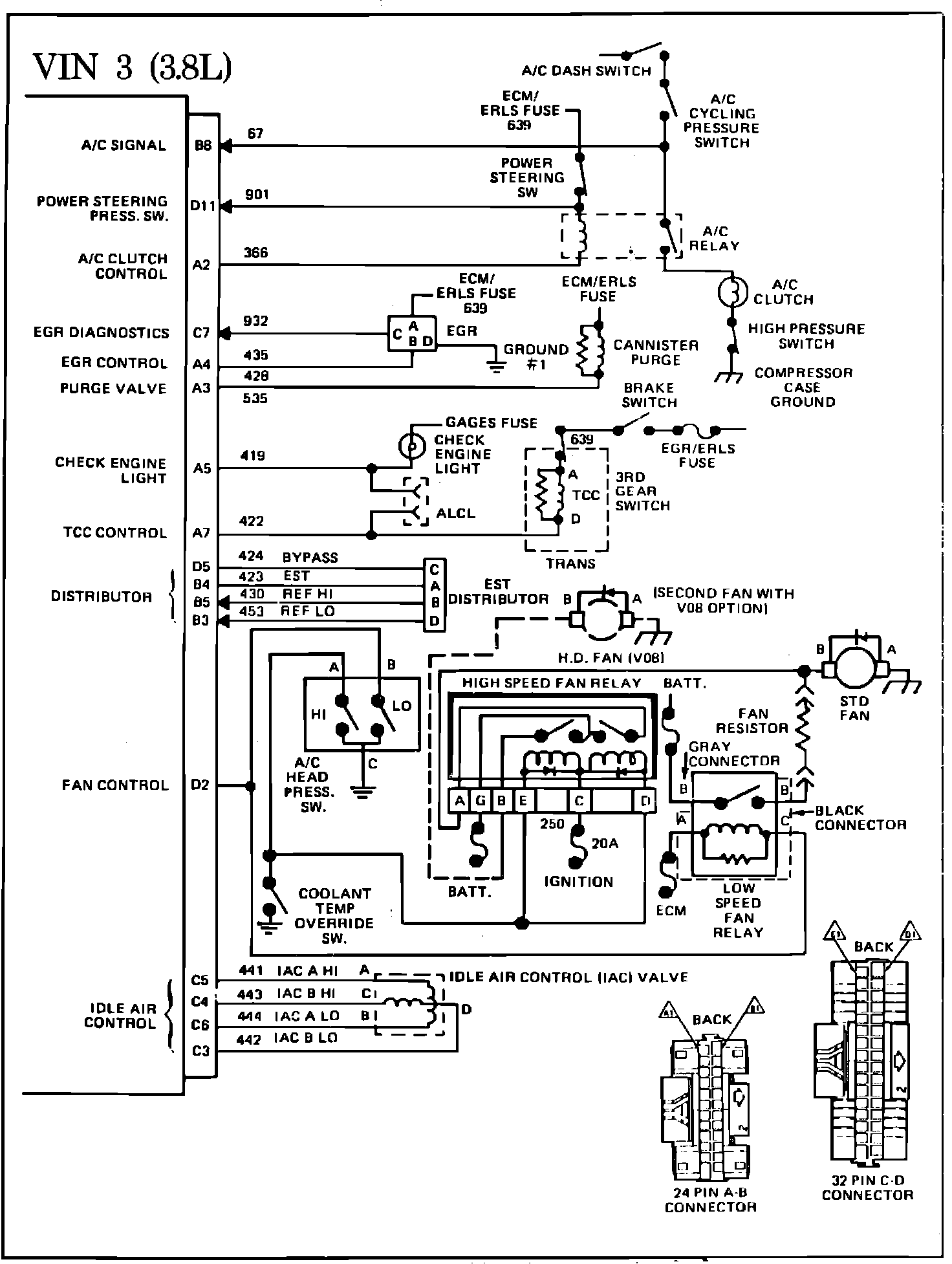

Fig. 011 ECM Wiring Diagrams (1 of 4):

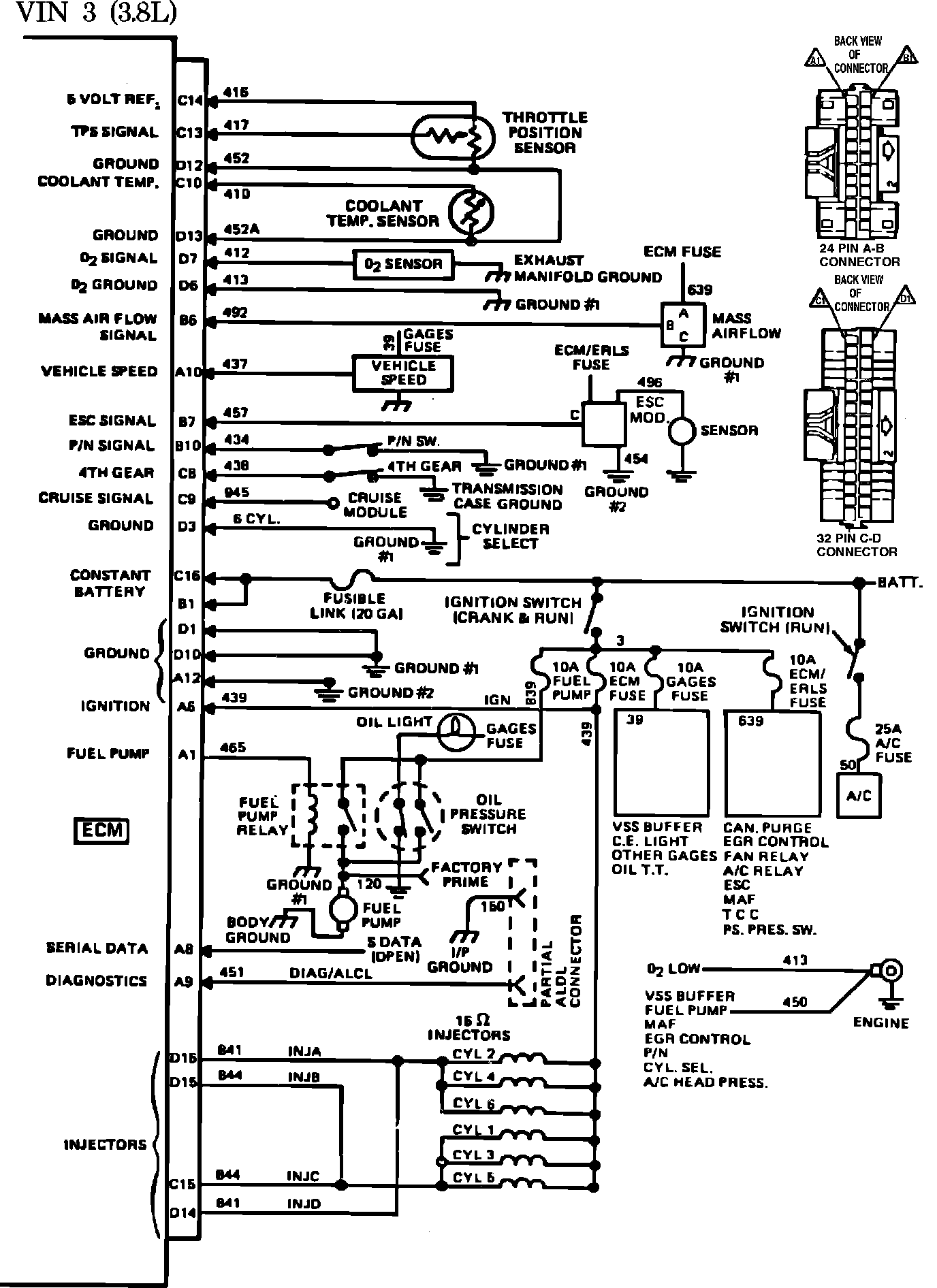

Fig. 012 ECM Wiring Diagrams (2 of 4):

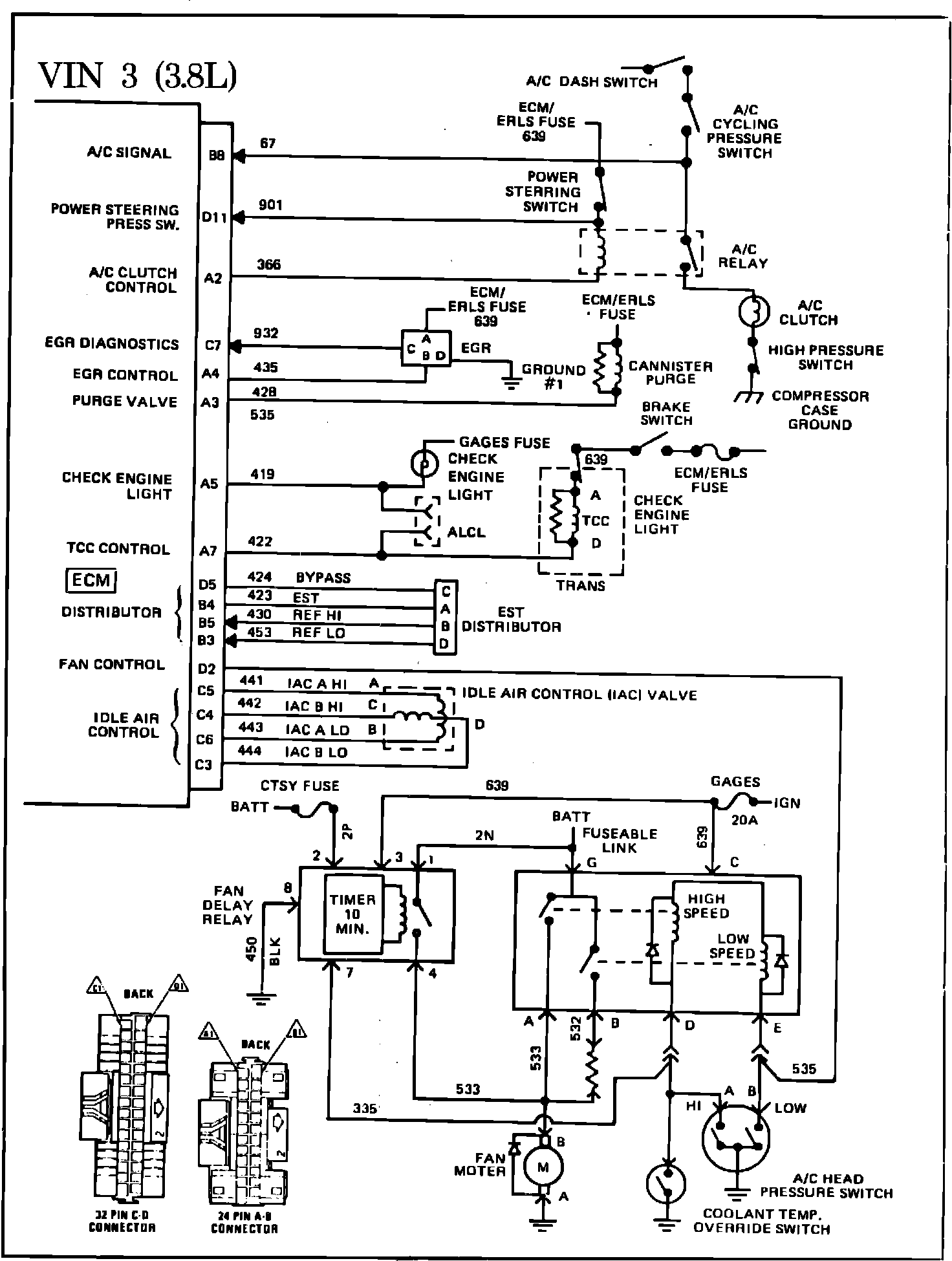

Fig. 013 ECM Wiring Diagrams (3 of 4):

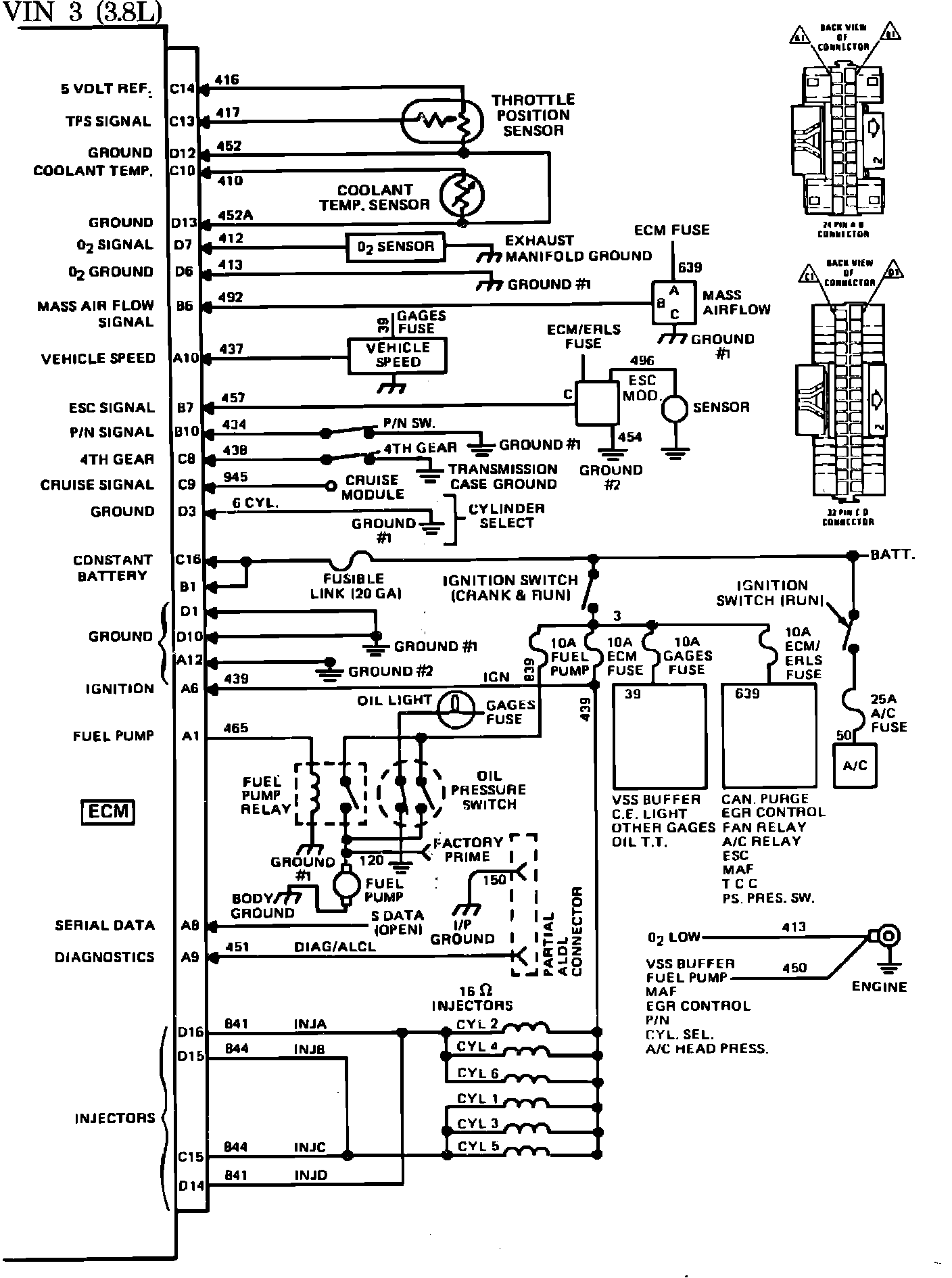

Fig. 014 ECM Wiring Diagrams (4 of 4):
