Wiring Diagrams

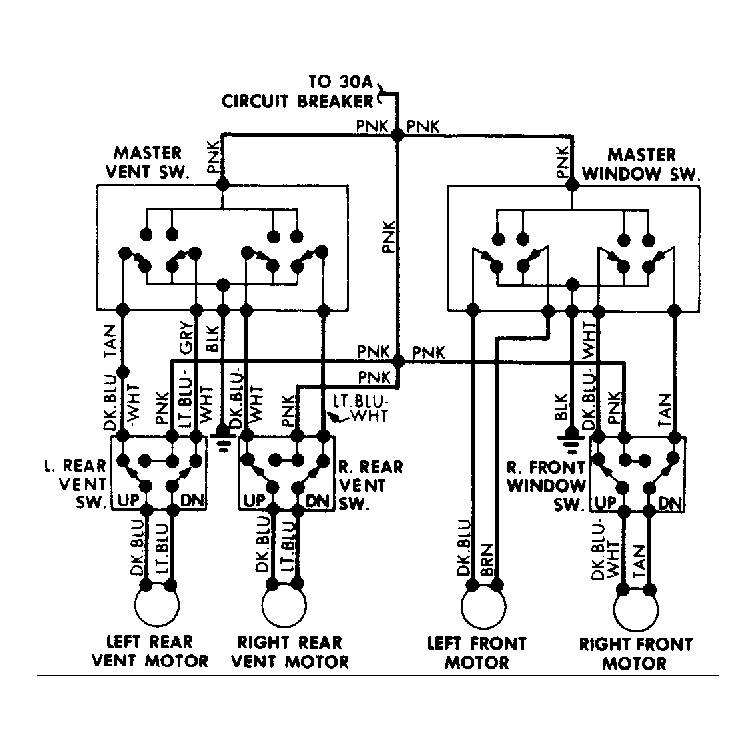

Fig 1: GM Power Rear Vent Wiring Diagram

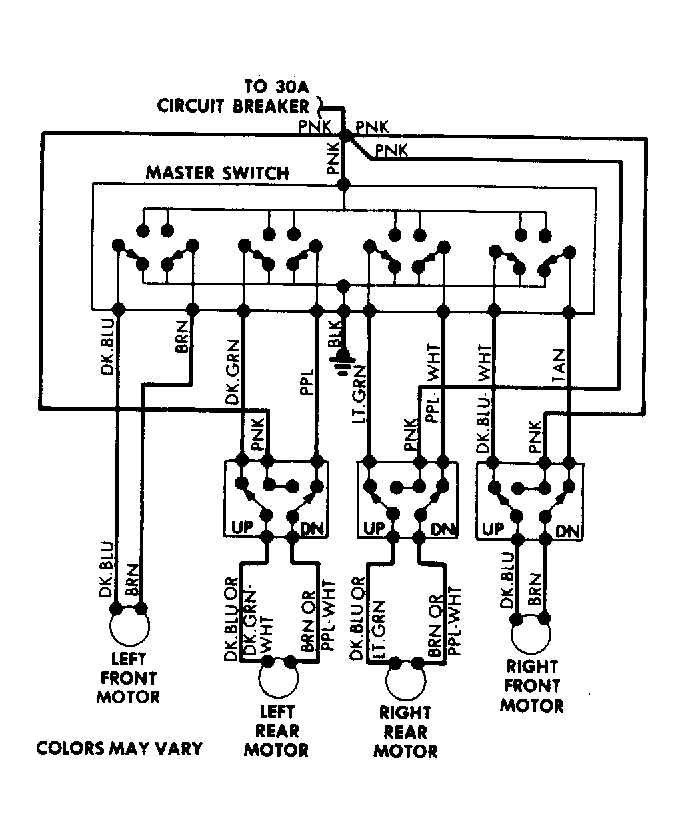

Fig 2: GM 4-Door Power Window Wiring Diagram

Fig 3: Power Window Wiring Diagram (Camaro, Corvette, and Firebird)

Fig 4: Power Window Wiring Diagram (Except Camaro, Corvette, and Firebird)
