Design and Clearance Specifications

250 C AUTOMATIC TRANSMISSION

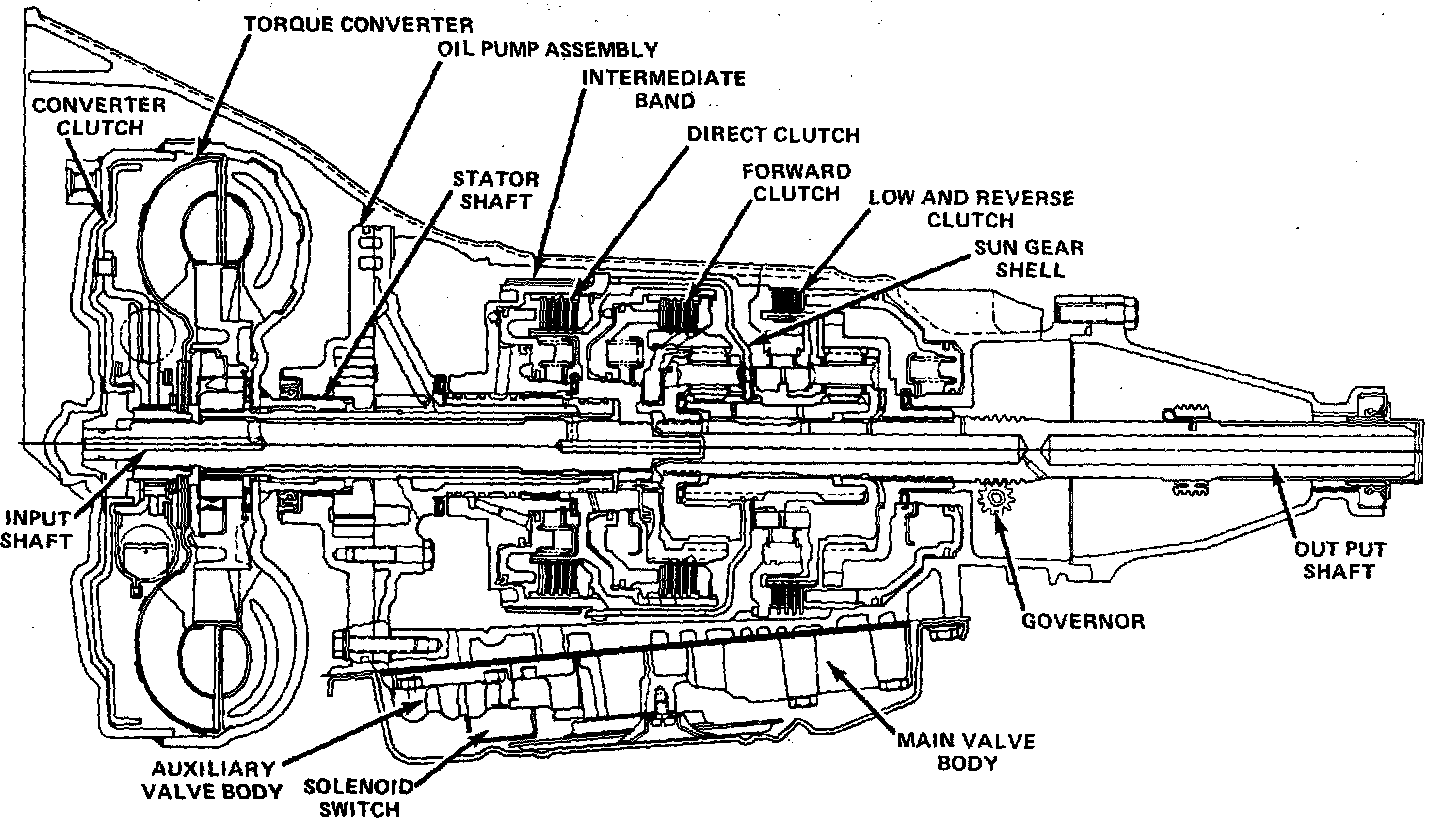

250C Sectional View:

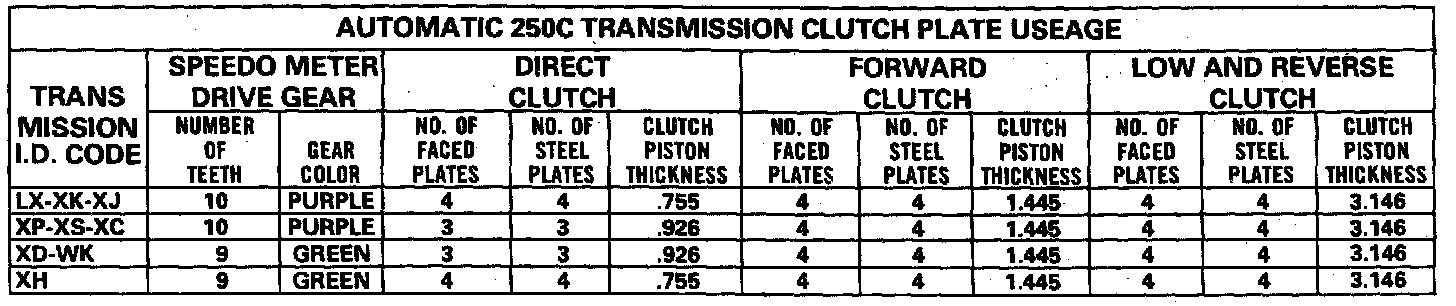

Transmission Clutch Plate Useage Chart:
