Circuit Check - Turbocharged

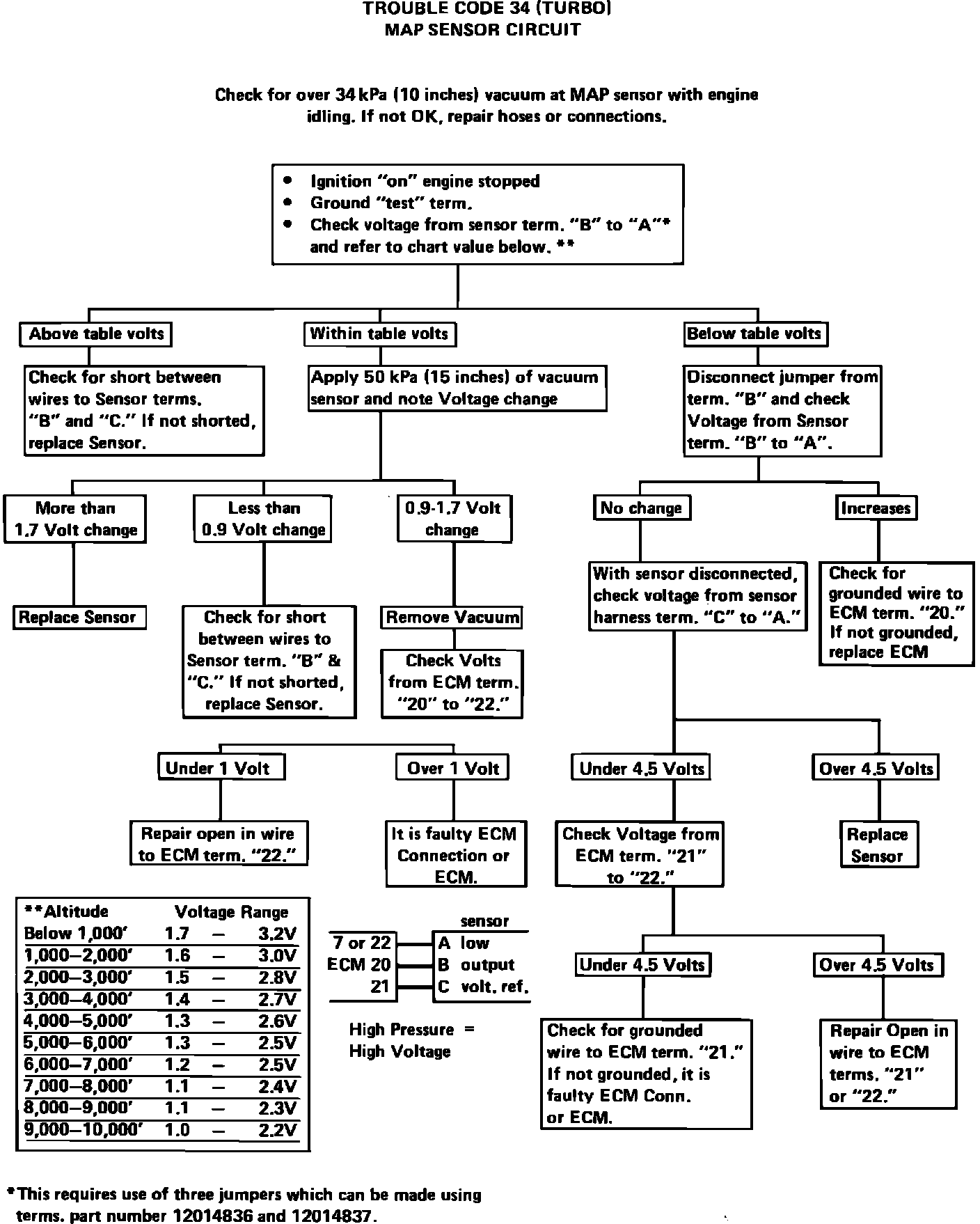

Fig. 9 MAP sensor diagnostic chart. Carbureted V6-231/3.8L w/turbocharger (use this chart with EST diagnostic & performance charts):
