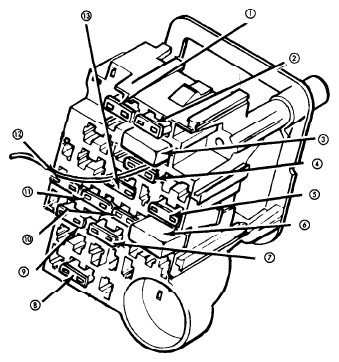

SKYHAWK Fuse Block Circuits
- 30 amp. Electric fuel pump.
- 20 amp. Clock, cigar lighter, courtesy light
- 20 amp. Tail lights.
- 20 amp. Stop lights, hazard warning.
- 4 amp. Instrument illumination.
- 25 amp. Heater and air conditioner
- 20 amp. Turn signals, back-up lights.
- 10 amp. Gauges
- 10 amp. Radio, TCS solenoid.
- 25 amp. Windshield wiper and washer.
