Remove spring strut
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Remove spring strut

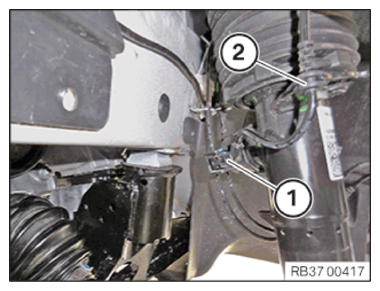

Unlock and disconnect plug connection (1) at the spring strut.
Remove cable from holder (2).
Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
TECHNICAL INFORMATION
Secure component against falling.

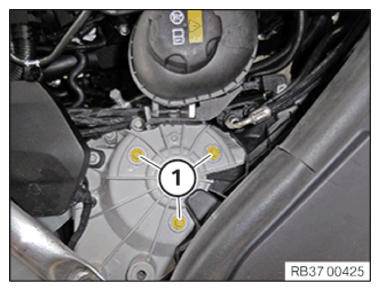

Loosen screws (1).
Courtesy of BMW OF NORTH AMERICA, INC.

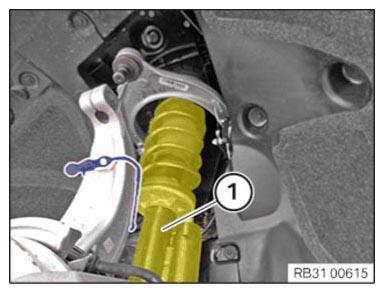

Feed out and remove spring strut (1).
Courtesy of BMW OF NORTH AMERICA, INC.
