Remove storage compartment

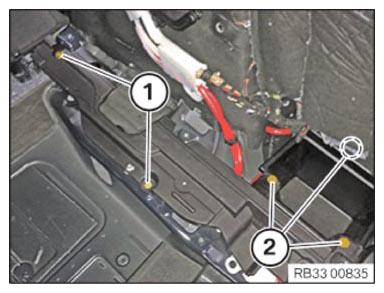

Loosen screws (1).
Loosen the expanding rivet (2).
Courtesy of BMW OF NORTH AMERICA, INC.

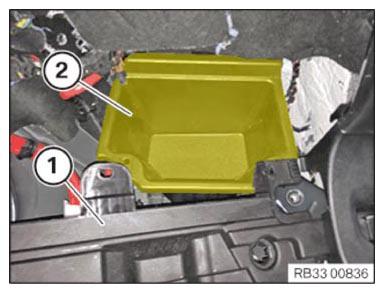

Raise side member pad (1) slightly.
Guide storage compartment (2) out and remove.
Courtesy of BMW OF NORTH AMERICA, INC.
