Installing front heat shield

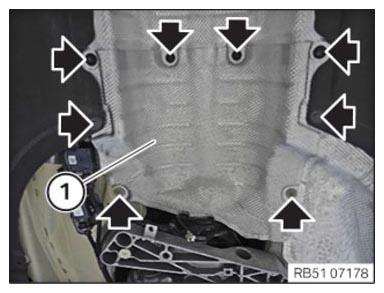

- Feed in and install the heat shield (1).
- Tighten the bolts and nuts (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Heat shield to underbody |
| Screws and nuts |
Tightening torque |
3 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Precondition
The rear heat shield has been removed.

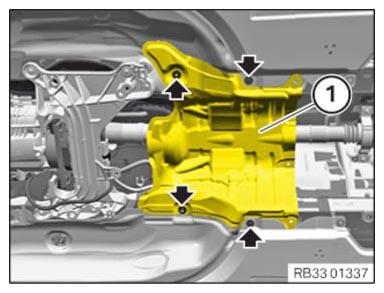

- Position the front heat shield (1)
.
- Tighten the bolts and nuts (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Heat shield to underbody |
| Screws and nuts |
Tightening torque |
3 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
