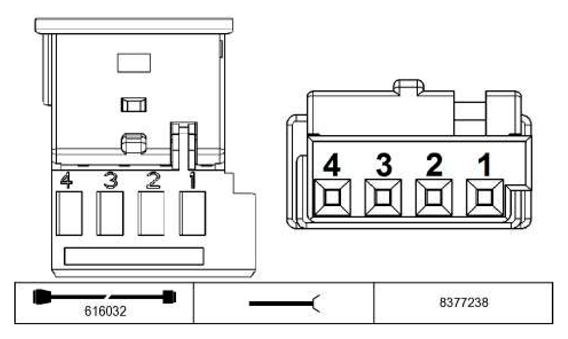

Controller A88*1B Connector End View
Courtesy of BMW OF NORTH AMERICA, INC. Pin Assignments At Plug Connector A88*1B
| Pin |
Type |
Description /Signal type |
Connection /Measuring information |
| 1 |
E |
Power supply, terminal 30B |
Fuse F25 |
| 2 |
M |
Ground |
Ground point |
| 3 |
E/A |
K-CAN2 data bus |
Body CAN2 bus connection |
| 4 |
E/A |
K-CAN2 data bus |
Body CAN2 bus connection |
