Remove front right cover in trunk

Raise the hood.
NOTE: Description is for left component only. Procedure on the right side is identical.

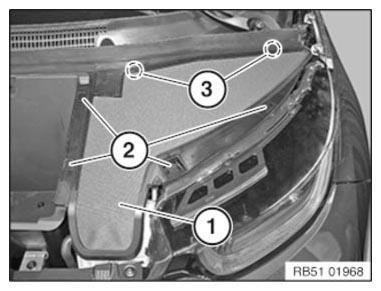

Release cover (1) on right side of vehicle from duallock straps (2) and feed out forwards out of guides (3).

Courtesy of BMW OF NORTH AMERICA, INC.
