Release trailing arm on wheel carrier
NOTE:
TECHNICAL INFORMATION
Up to build date 02/2014: The screw connection is loosened and tightened using the nut.
From Version 02/2014: The screw connection is loosened and tightened using the bolt. The nut is securely installed on the trailing arm.
Up to build date 02/2014: The screw connection is loosened and tightened using the nut.
From Version 02/2014: The screw connection is loosened and tightened using the bolt. The nut is securely installed on the trailing arm.

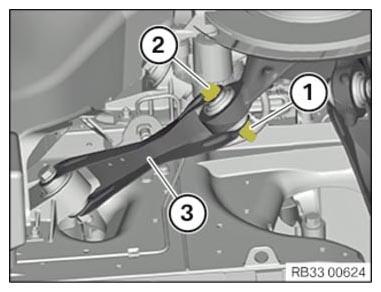

- Unfasten nut (1).
- (2) Pull out screw.
- Release trailing arm (3) from the wheel carrier.
