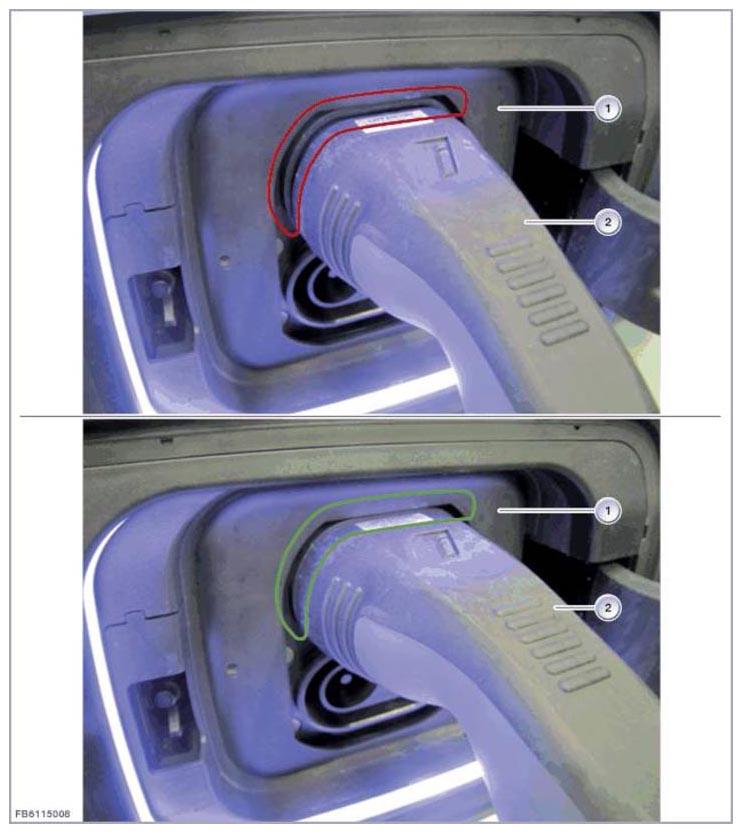

Charging plug and charging socket
NOTE:
The charging plug must be inserted up to the end stop in the charging socket.
The charging plug detection and the pulse-width modulated signal cannot however be available in charging plug inserted up to the end stop. The charging procedure can then start, but the charging plug is not detected as locked if it is locked: Status implausible.
| Item | Explanation |
|---|---|
| 1 | Charging socket |
| 2 | Charging plug |
