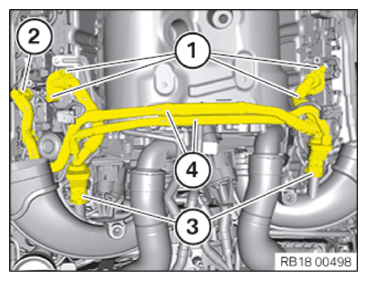

Remove engine ventilation line
- Loosen screws (1).
- Unlock and detach engine ventilation line (2).
- Unlock engine ventilation line (3) and detach from the clean air pipe.
- Release and remove engine ventilation line (4) from the cylinder head cover.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
