Remove Both Actuators (Engine Removed)

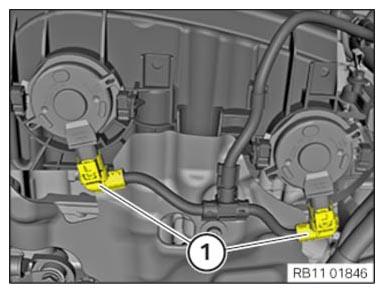

NOTE: The figure shows the rear of the engine.

Unlock and disconnect both connectors (1).

Courtesy of BMW OF NORTH AMERICA, INC.

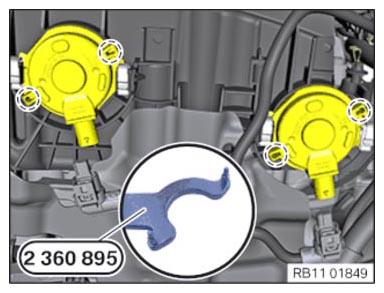

NOTE: The figure shows the rear of the engine.
Position special tool 2 360 895 correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

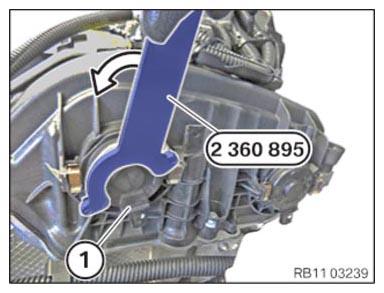

Twist the actuator (1) of the intake side with the special tool 2 360 895 by about 50° in the direction of the arrow and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.

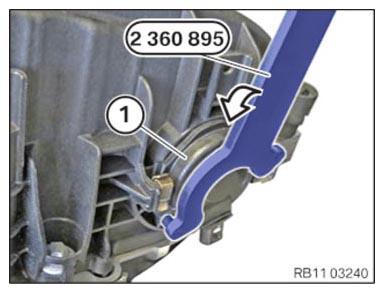

Twist the actuator (1) of the exhaust side with the special tool 2 360 895 by about 50° in the direction of the arrow and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
