Releasing The VANOS Central Valve
NOTE:
TECHNICAL INFORMATION
Assemble the tools for releasing and tightening of the VANOS central valves according to their accessibility.
Assemble the tools for releasing and tightening of the VANOS central valves according to their accessibility.

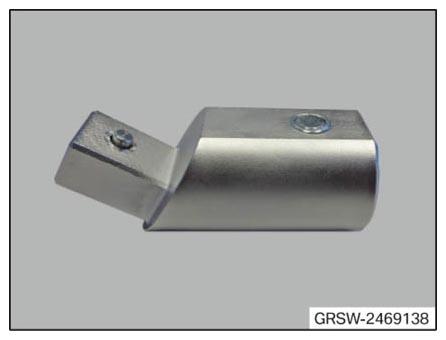

- Have the special tool 2 469 138
ready.
- Have all the special tools and commercially available tools ready.

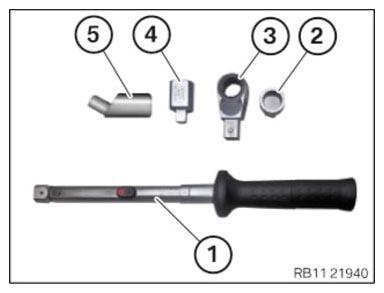

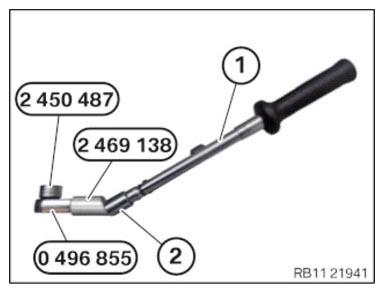

Number Description 1 Standard torque wrench 2 Wrench socket set 2 450 487 3 Reversible ratchet 0 496 855 4 Commercially available reduction 5 adapter 2 469 138 - Assemble all the special tools and commercially available tools as shown.

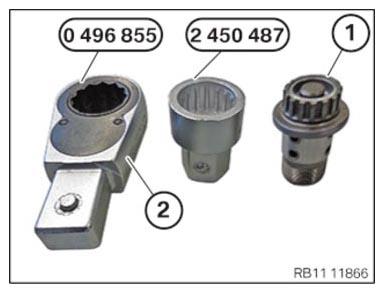

- To release the VANOS central valve (1) use the reversible ratchet (2) from the special tool 0 496 855
with the special tool 2 450 487.

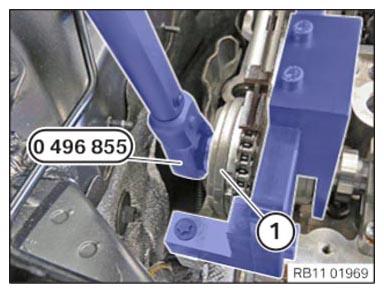

- To release VANOS central valve (1), use the special tool 0 496 855.

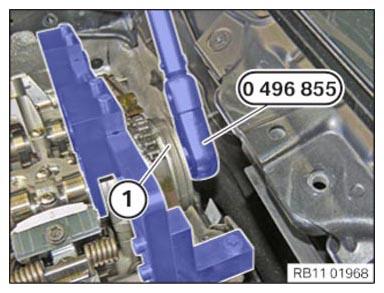

- Release the VANOS central valve of the intake adjuster (1) with special tool 0 496 855
or 2 450 487.

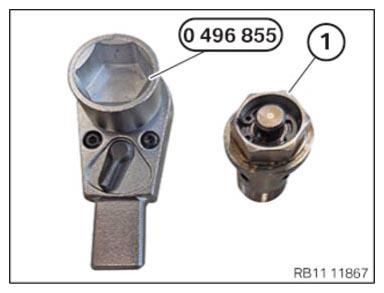

- Release VANOS central valve of the exhaust camshaft adjuster (1) with the special tool 0 496 855 or 2 450 487.
