Remove The Cover In The Left Engine Compartment
NOTE:

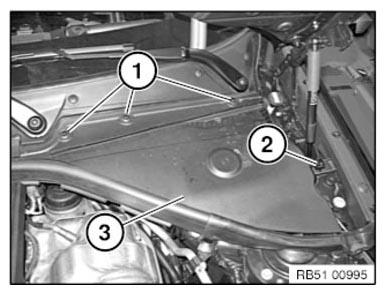

Schematic diagram is for example purposes. Some parts may differ in certain details.
- Loosen the mounting elements (1).
- Unlock the latch mechanism (2).
- Remove the cover (3).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
