Installing The Coolant Line Of The Air Conditioning Compressor

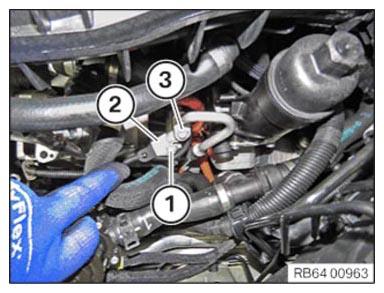

- Position the holder (2) and tighten the bolt (1).
- Position the refrigerant line and tighten the bolt (3).TIGHTENING TORQUE SPECIFICATION
Refrigerant line on air conditioning compressor M8

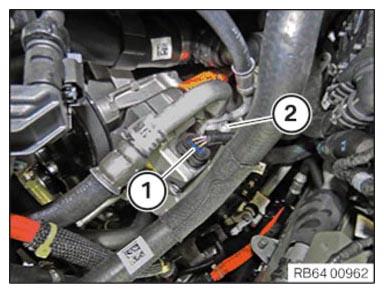

Replace screw.Tightening torque 19 Nm - Position the refrigerant line and tighten the bolt (2).TIGHTENING TORQUE SPECIFICATION
Refrigerant line on air conditioning compressor M8
Replace screw.Tightening torque 19 Nm - Connect connectors (1) and lock.
