Center console operating facility
Via the camera button in the operating facility of the center console, the front camera can be manually activated or deactivated.
F15: An electrical link connects the center console control panel to the Integrated Chassis Management (ICM). The ICM control unit supplies the operating facility of the center console with terminal 31.
I01: An electrical link connects the center console control panel to the Body Domain Controller (BDC). The BDC control unit supplies the center console operating facility with terminal 31.
The operating facility of the center console supplied by the Body Domain Controller (BDC) with terminal 58g (locator lighting).

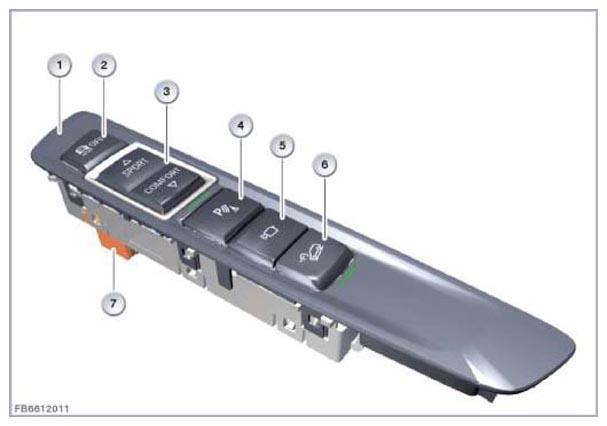

F15 shown
| Item | Explanation |
|---|---|
| 1 | Center console operating facility |
| 2 | DSC button OFF |
| 3 | Driver experience switch with ECO PRO mode |
| 4 | PDC button |
| 5 | Camera button |
| 6 | HDC button |
| 7 | 10-pin plug connection |
The following components are, depending on the setting on the central information display, automatically activated by engaging the reverse gear:
- Park Distance Control (PDC)
- Rear view camera
- Exterior mirror cameras
Observe the Owner's Handbook during this!
