61 31 137 Removing and installing/renewing USB interface connecting socket (version 2)

Necessary preliminary tasks:

• Remove SWITCH FOR FRONT PASSENGER AIRBAG DEACTIVATION

Disconnect plug connection (1).

Unlock retaining clips (2) on left/right.

Press out USB interface connecting socket (3) in direction of arrow.

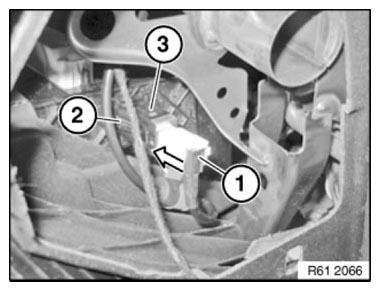

Fig 1: Pressing Out USB Interface Connecting Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining clips (2) must not be damaged.

Make sure USB interface connecting socket (3) is correctly seated.
