32 43 521 Replace The Servotronic Control Unit

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Release nuts (1) on the rear trim panel.

Unlock connector and remove.

Remove the control unit (2) from the bracket.

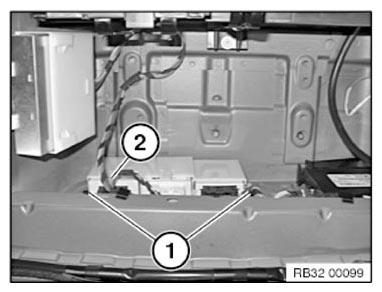

Fig 1: Control Unit And Nuts
G09877643Courtesy of BMW OF NORTH AMERICA, INC.

After installation:
