22 11 110 Replacing left engine support arm (N55)

Necessary preliminary work:

Secure engine in installation position . See 11 00 670 SECURING ENGINE IN INSTALLATION POSITION (N55)
Remove rear UNDERBODY PROTECTION
Remove left COVER
Remove rear left CHARGE AIR DUCT

Release screws (3).

Place heat exchanger (4) to one side.

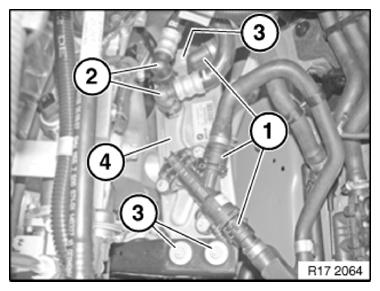

Fig 1: Identifying Heat Exchanger Screws

G09876511

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove engine support arm.

Tightening torque 22 11 3AZ .

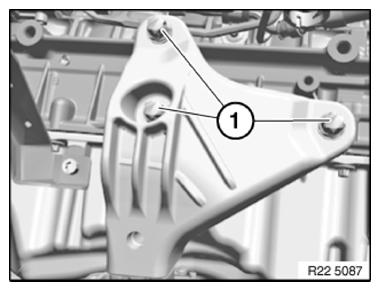

Fig 2: Identifying Engine Support Arm Screws

G09873550

Courtesy of BMW OF NORTH AMERICA, INC.
