Functional check on electric EGR valve

WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

Removing the cover from the EGR valve.

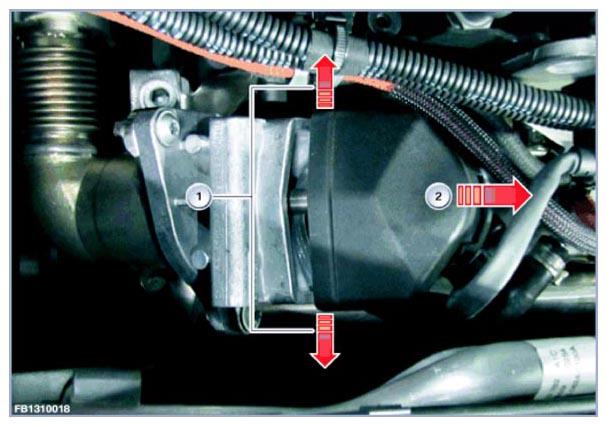

Fig 1: Removing Cover From EGR Valve
G09909680Courtesy of BMW OF NORTH AMERICA, INC.

M57 shown

  1. Release cover catch on the side.
  2. Remove cover.
