Necessary preliminary work

• Read fault memory.
• Disconnect BATTERY EARTH LEAD .
• Remove DME CONTROL UNIT  .

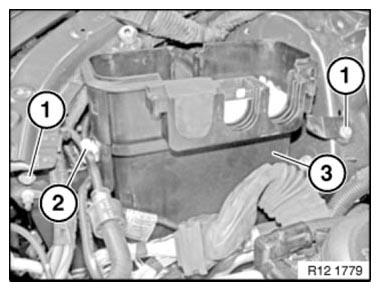

Release screws (1).

Tightening torque 12 90 1AZ .

Unclip coolant lines at clamp (2) from electronics box.

Feed electronics box (3) out upward and remove.

Fig 1: Identifying Electronics Box, Clamp And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

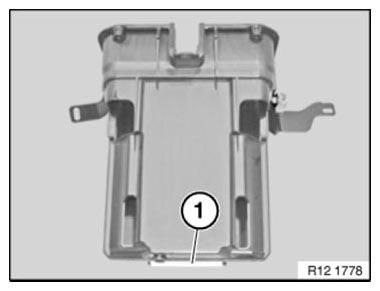

When installing the electronics box, insert guide (1) on engine support.

Fig 2: Identifying Engine Support Guide

Courtesy of BMW OF NORTH AMERICA, INC.
