13 62 610 Replacing pulse generator on crankshaft/transmission

Necessary preliminary tasks:

• Read out fault memory of DME control unit; if necessary, work through test schedules.
• Switch off ignition.
• REMOVE UNDERBODY PROTECTION .
• Remove REINFORCEMENT PLATE .

Release screws (1).

Remove cover.

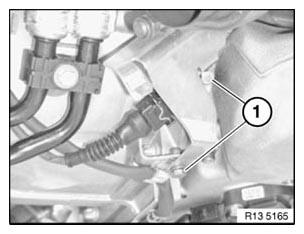

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector and remove.

Release screw (1).

Remove pulse generator.

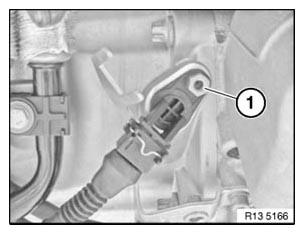

Fig 2: Identifying Pulse Generator Screw

Courtesy of BMW OF NORTH AMERICA, INC.
