Connection of measuring equipment

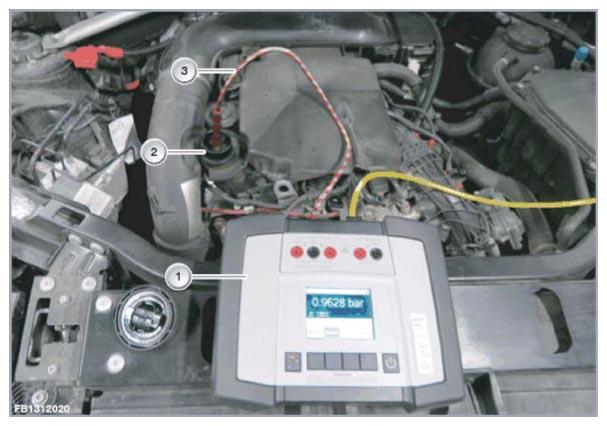

Fig 1: Identifying BMW Measuring Equipment
G09908206Courtesy of BMW OF NORTH AMERICA, INC.
  1. BMW measuring equipment
  2. Special tool:
    • For N47C in MINI: 2 364 877
    • For all the other N47 and N57: 11 9 880
  3. Hose, order number: 81 38 2 201 924
