28 60... Notes on mechatronics (GS7D36SG)

IMPORTANT: After completing work:

Load specific data status with the BMW diagnosis system
Check oil level .
Use only gear oil for dual clutch transmission GS7D36SG DCTF-1 Pentosin (P/N 83 22 2 147 477). .

Failure to comply with this instruction will result in serious damage to the twin-clutch gearbox.

IMPORTANT: Read and comply with notes on ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

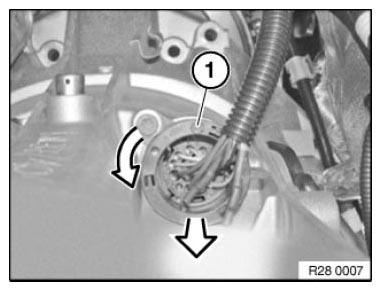

Unscrew plug (1) and disconnect.

Fig 1: Identifying Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 24 2 390 in sealing sleeve (1).

Fig 2: Inserting Special Tool (24 2 390) In Sealing Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.
