22 11 110 Replacing left engine support arm (N55)

Necessary preliminary tasks:

• Secure ENGINE IN INSTALLATION POSITION .
• Remove CHARGE AIR DUCT .

Release screw (2).

Release nut (3) and detach ground strap.

Release screw (4).

Release screws (1).

Tightening torque 22 11 3AZ .

Remove engine support arm (5).

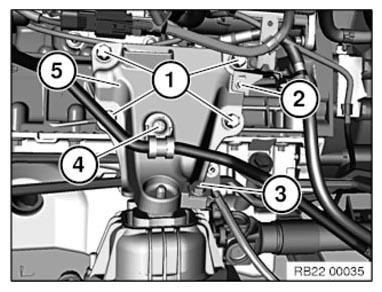

Fig 1: Identifying Engine Support Arm, Screws, And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
