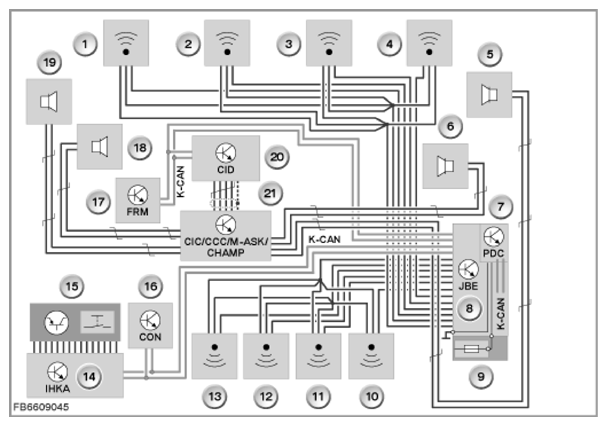

System network
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Ultrasonic sensor, front left side |
| 2 | Ultrasonic sensor, front outer left |
| 3 | Ultrasonic sensor, front center right |
| 4 | Ultrasonic sensor, front outer right |
| 5 | Front right speaker |
| 6 | Right rear speaker |
| 7 | PDC in junction box electronics (JBE) |
| 8 | Junction box electronics (JBE) |
| 9 | Power distribution box |
| 10 | Ultrasonic sensor, rear outer right |
| 11 | Ultrasonic sensor, rear center right |
| 12 | Ultrasonic sensor, rear center left |
| 13 | Ultrasonic sensor, rear outer left |
| 14 | Integrated automatic heating and climate control system (IHKA) |
| 15 | Center console control panel |
| 16 | Controller (CON) |
| 17 | Footwell module (FRM) |
| 18 | Left rear speaker |
| 19 | Front left speaker |
| 20 | Central information display (CID) |
| 21 | Headunit |
