31 00... Front axle + steering work requiring subsequent wheel alignment check

A WHEEL ALIGNMENT CHECK must be carried out after the following work:

• Release of following screw/bolt connections:
  • Steering gear to front axle support (only if components are not marked for alignment)
  • Lower wishbone to front axle carrier
  • Track rod end to track rod
• Replacement of following parts:
  1. Front axle support
  2. Steering box
  3. Swivel bearing
  4. Track rod end
  5. Lower wishbone / rubber mount
  6. Track rod
  7. Gaiter (if the tie rod end has to be screwed off)

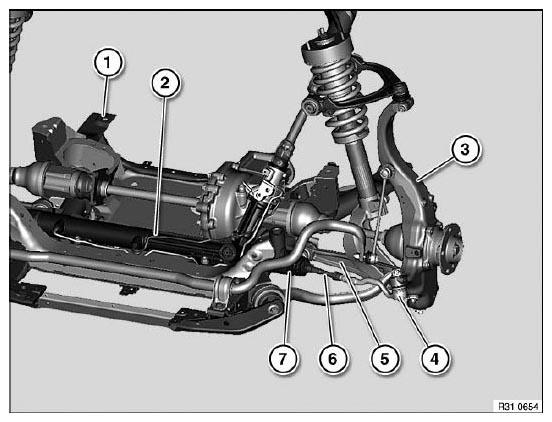

  Fig 1: Front Axle And Steering Components
  Courtesy of BMW OF NORTH AMERICA, INC.
