11 14 005 Replacing front crankshaft seal (S65)

Special tools required:

Necessary preliminary tasks:

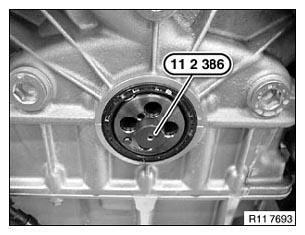

Lay special tool 11 2 386 on crankshaft.

Fig 1: Identifying Special Tool (11 2 386)

Courtesy of BMW OF NORTH AMERICA, INC.

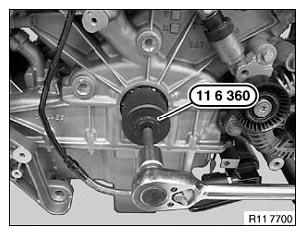

Screw special tool 11 6 360 to 80 Nm into radial shaft seal.

Release radial seal from housing.

Repeat the operation several times if necessary.

NOTE: Carefully saw open old radial shaft seal with an iron saw from special tool 11 6 360 .

Fig 2: Opening Radial Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Remove remnants of sealant from sealant outlet (1) on left and right.

Apply Drei Bond sealant to sealant outlet (1) on left and right.

Fig 3: Identifying Crankshaft Seal Sealant Outlet

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 11 5 331 with bolts (1).

IMPORTANT: Pay attention to dowel pin.

Fig 4: Securing Special Tool (11 5 331) With Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Push special tool 11 7 231 onto special tool 11 5 331 in direction of arrow.

Fig 5: Pushing Special Tool (11 7 231) Onto Special Tool (11 5 331)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove support ring from shaft seal.

Push radial shaft seal (1) uniformly by way of fitting aid 11 7 231 onto special tool 11 5 331.

Position shaft seal approx. 5 mm before crankcase.

Remove special tool 11 7 231.

Fig 6: Pushing Radial Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Press in radial shaft seal (1) with special tools 11 5 332 and 11 5 333.

Fig 7: Pressing Radial Shaft Seal Using Special Tools (11 5 332)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Setting time of shaft seal approx. 1 hour.

CORRECT engine oil level if necessary.
