System Circuit Diagram for Automatic Soft Close Function

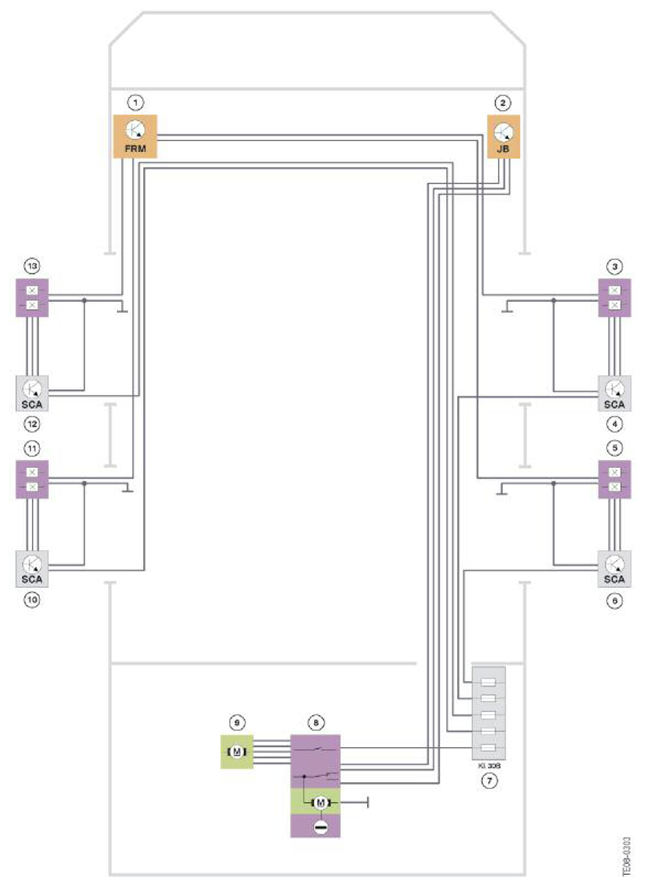

Fig 1: Automatic Soft Close Function System Circuit Diagram
G06925089Courtesy of BMW OF NORTH AMERICA, INC.
COMPONENTS DESCRIPTION CHART

Index Explanation
1 Footwell module (FRM)
2 Junction box module (JB)
3 Door switch, central locking, Hall-effect sensor for front passenger door Automatic Soft Close function
4 Front passenger door Automatic Soft Close unit (SCA)
5 Door switch, central locking, Hall-effect sensor for near-side rear door
6 Near-side rear door Automatic Soft Close unit (SCA)
7 Luggage compartment power distribution box
8 Trunk central locking unit
9 Trunk Automatic Soft Close unit
10 Off-side rear Automatic Soft Close unit
11 Door switch, central locking, Hall-effect sensor for off-side rear door Automatic Soft Close function
12 Driver's door Automatic Soft Close unit (SCA) Automatic Soft Close function
13 Door switch, central locking, Hall-effect sensor for driver's door Automatic Soft Close function
KI. 30B Terminal 30 basic mode
