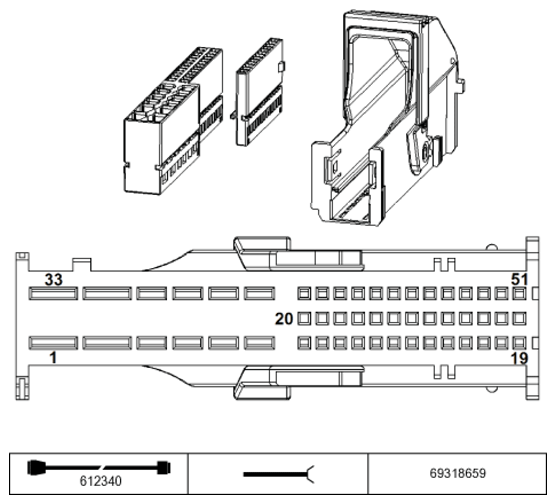

Footwell Module A58*3B Connector End View
Pin Assignments At Plug Connector A58*3B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | Power supply, terminal 30F | Fuse F17 |
| 2 | E | Power supply, terminal 30F | Fuse F1 |
| 3 | E | Power supply, terminal 30F | Fuse F18 |
| 4 | A | Activation, power window drive | Power window drive, driver |
| 5 | A | Activation, power window drive | Power window drive, driver |
| 6 | A | with xenon headlight Activation cornering light | Left headlight |
| 7 | -- | Not used | |
| 8 | A | from model revision Ambient lighting activation | Connector, ambient lighting 2 |
| 9 | A | Activation, brake light | Tail light, outer right |
| 10 | A | Activation, courtesy lighting | Connector, ground lights |
| 11 | A | Activation, courtesy lighting | Connector, courtesy lighting, passenger's side 7-Series up to 2010_08 |
| 12 | E | Supply, terminal 15 | Car access system |
| 13 | E | Door contact signal | Front passenger-door lock |
| 14 | E | Hall sensor signal | Power window drive, driver |
| 15 | E | Door contact signal | Door lock, rear passenger's side |
| 16 | E | Hall sensor signal | Power window drive, driver |
| 17 | E | Hall sensor signal | Power window drive, passenger |
| 18 | M | Ground | Ground point |
| 19 | -- | Not used | |
| 20 | A | Signal, switch off consumer load | Function control centre, roof |
| 21 | E | Brake light switch signal | Brake light switch |
| 22 | E | Hall sensor signal | Power window drive, driver |
| 23 | E | Hall sensor signal | Power window drive, passenger |
| 24 | E | Door contact signal | Driver's door lock |
| 25 | E | Hall sensor signal | Power window drive, passenger |
| 26 | E | Door contact signal | Door lock, rear driver's side |
| 27 | E | Switch signal, interior lighting | Function control centre, roof |
| 28 | -- | Not used | |
| 29 | E | Switch signal, interior lighting | Interior light, rear |
| 30 | -- | Not used | |
| 31 | -- | Not used | |
| 32 | A | from model revision Ambient lighting activation | Connector, ambient lighting 1 |
| 33 | M | Ground | Ground point |
| 34 | E | Power supply, terminal 30F | Fuse holder, rear |
| 35 | A | Activation, power window drive | Power window drive, passenger |
| 36 | A | Activation, power window drive | Power window drive, passenger |
| 37 | A | Activation, fog lights | Left fog light |
| 38 | A | with xenon headlight Activation, low beam light | Right headlight |
| 39 | A | Activation, entrance lights | Connector, entrance lights |
| 40 | A | from model revision with Adaptive Headlight or full-LED headlight Activation, flashing indicator lamp | Right headlight |
| 41 | A | Activation, tail light | Tail light, inner right |
| 42 | E | Hall sensor signal | Driver's door lock |
| 43 | A | Activation, brake light | Tail light, outer left |
| 44 | A | Activation, flashing indicator lamp | Direction indicator light repeater, front left |
| 45 | A | Activation, flashing indicator lamp | Tail light, outer left |
| 46 | E | Hall sensor signal | Driver's door lock |
| 47 | A | Activation, reversing light | Tail light, inner left |
| 48 | A | Locator light and ambient light | Connector, locator light and ambient light |
| 49 | A | Activation, licence plate light | Licence plate lights |
| 50 | A | up to model revision Activation, side lights/daytime driving light | Left headlight |
| 51 | A | Activation, rear fog light Dynamic brake light | Tail light, inner left |
