Front Center Air Vent

The front center air vent has a variable airflow focus feature that allows the airflow to be individually varied between spot-focussed and diffused mode settings.

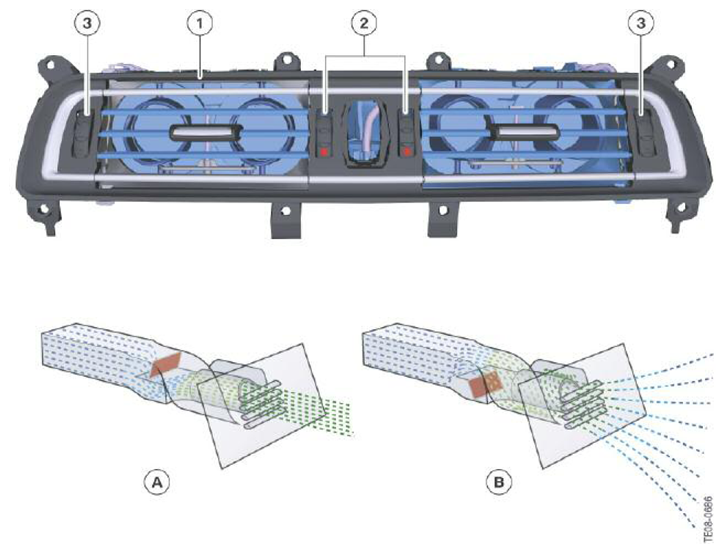

Fig 1: Identifying Front Center Air Vent With Variable Airflow Focus, F01/F02

Courtesy of BMW OF NORTH AMERICA, INC.

INDEX EXPLANATION CHART

Index	Explanation
1	Front center fresh-air vent
2	Front center airflow stratification controls
3	Spot/diffuser airflow adjusters
A	Spot-focussed airflow setting
B	Diffused airflow setting

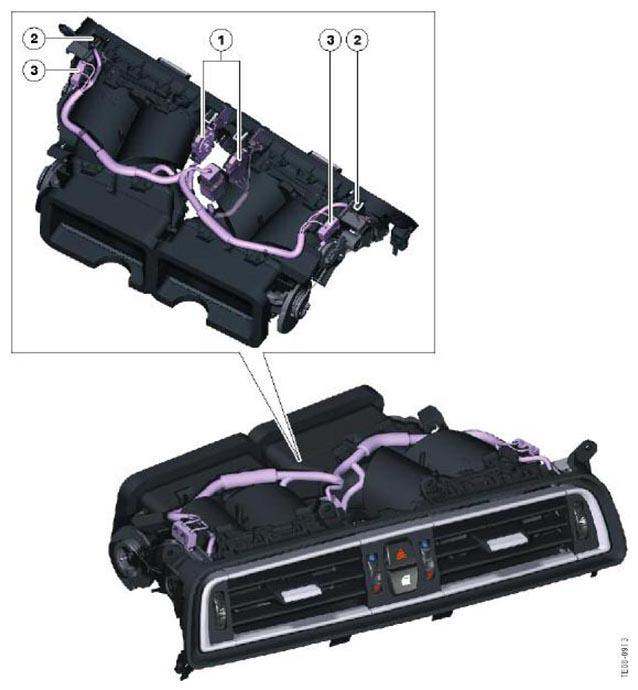

Fig 2: Identifying Front Center Air Vent With Variable Airflow Focus, F01/F02

Courtesy of BMW OF NORTH AMERICA, INC.

INDEX EXPLANATION CHART

Index	Explanation
1	Left/right airflow stratification potentiometer and illumination
2	Left/right adjuster illumination
3	Left/right limit switch
