IHKA Blower Fan

The fan draws in the recirculated air from the passenger compartment through an opening in the bulkhead.

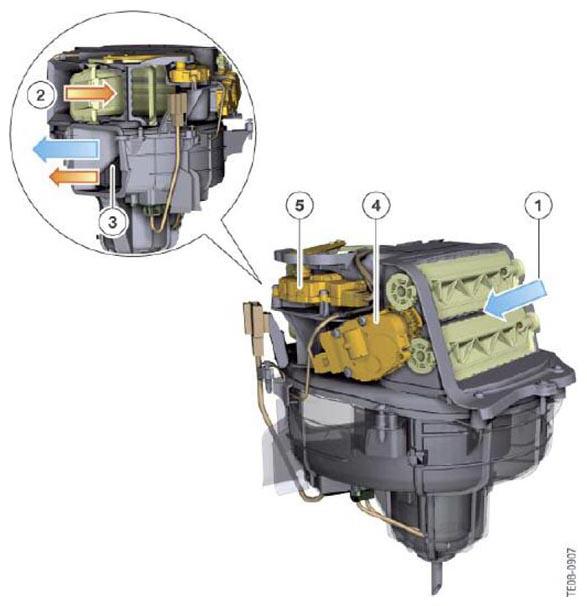

Fig 1: System Air Flow Diagram - Climate Control Air Intake Assembly, F01/F02

Courtesy of BMW OF NORTH AMERICA, INC.

INDEX EXPLANATION CHART

Index	Explanation
1	Fresh air intake
2	Recirculated-air intake
3	Air outlet via gaiter to climate control housing
4	Fresh-air/ram-air stepper motor
5	Recirculated-air stepper motor
