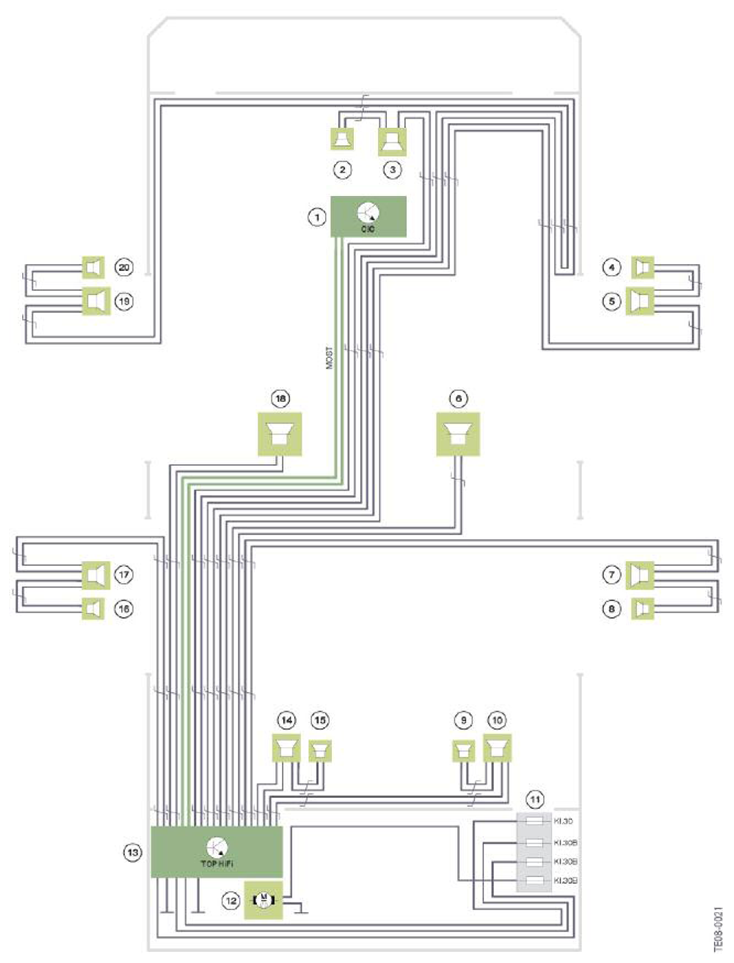

TOP-HiFi Speaker System Circuit Diagram
INDEX REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Car Information Computer |
| 2 | Tweeter, front center |
| 3 | Mid-range speaker, front center |
| 4 | Tweeter, front right door |
| 5 | Mid-range speaker, front right door |
| 6 | Woofer, under right front seat |
| 7 | Mid-range speaker, rear right door |
| 8 | Tweeter, rear right door |
| 9 | Tweeter, rear window shelf, right |
| 10 | Mid-range speaker, rear window shelf, right |
| 11 | Rear power distribution box |
| 12 | Axial-flow fan, TOP-HiFi amplifier |
| 13 | Top-HiFi amplifier |
| 14 | Mid-range speaker, rear window shelf, left |
| 15 | Tweeter, rear window shelf, left |
| 16 | Tweeter, rear left door |
| 17 | Mid-range speaker, rear left door |
| 18 | Woofer, under left front seat |
| 19 | Mid-range speaker, front left door |
| 20 | Tweeter, front left door |
| MOST | Media Orientated System Transport |
